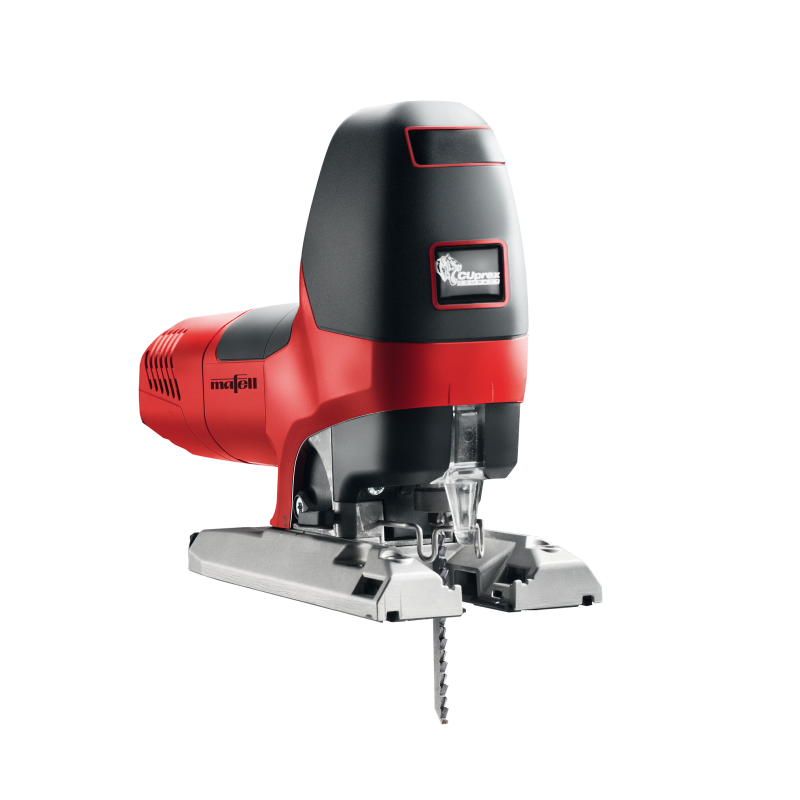

MAFELL P1 cc – Professional Precision Jig Saw in T-MAX Case

MAFELL P1 cc – Professional Precision Jig Saw in T-MAX Case

High-performance 900 W jig saw for precise and demanding professional woodworking applications.

The MAFELL P1 cc is a professional precision jig saw designed for demanding woodworking applications where cutting accuracy, stability and control are essential. Its powerful CUprex Compact motor delivers a consistent 900 W of power, even during long cuts, while the low centre of gravity and ergonomic design provide excellent handling and stability.

The patented CUmax sawblade clamping system securely locks the blade in position using a wedge mechanism, preventing unwanted blade movement during cutting. Combined with the specially designed CUnex W1 precision blade, this enables exceptionally accurate and square cuts, including precise curved cutting.

The P1 cc offers continuously variable speed control from 800 to 3,000 strokes/min, allowing the cutting performance to be adapted precisely to the material and application. The robust baseplate features an integrated vacuum channel for highly effective dust extraction directly alongside the sawblade. An integrated blower also helps keep the cutting line and work surface clear, even when no external dust extractor is connected.

With the appropriate accessories, the P1 cc can be used for straight cuts with the MAFELL F guide rail system, guided circle cutting, recesses and bevel cuts up to 45°. The quick-release blade clamping mechanism allows fast, tool-free sawblade changes.

Key Features

• CUprex Compact 900 W — powerful motor with consistently high performance
• CUmax Precision — secure blade clamping for highly accurate cutting
• Ergo-Balance Design — comfortable handling, low centre of gravity and excellent control
• Integrated Dust Extraction — effective dust removal directly alongside the blade
• Variable Speed Control — 800–3,000 strokes/min for material-specific cutting performance
• Tool-Free Blade Change — quick and convenient blade replacement
• 45° Bevel Cutting — versatile cutting for demanding professional applications
• MAFELL Guide Rail Compatible — precise straight cuts with the F guide rail system

Main Applications

The P1 cc is suitable for a wide range of professional applications:

• Straight cuts with the MAFELL F guide rail system
• Guided circle cutting using the P-PA parallel guide and CUnex blades
• Recesses and cut-outs
• Bevel cuts up to 45°
• Precise freehand straight and curved cuts
• Cutting different materials with the appropriate MAFELL sawblade

CUnex Precision Sawblade Technology

The CUnex W1 is a specially engineered precision sawblade consisting of two separately soldered blades. Its high strength and distinctive wedge-shaped design significantly increase blade stability, helping achieve precise and square cuts even when cutting curves.

Technical Specifications

Delivery Includes – Ref. 917103

• MAFELL P1 cc jig saw
• 3 × CUnex sawblades: W1, W2 and W+P2
• P-PA parallel guide fence
• P1-GP baseplate
• P-AS hose connector
• P-SA chip deflector
• P-SS splinter guard
• P-G glider
• 4 m mains cable
• T-MAX transport and storage case
