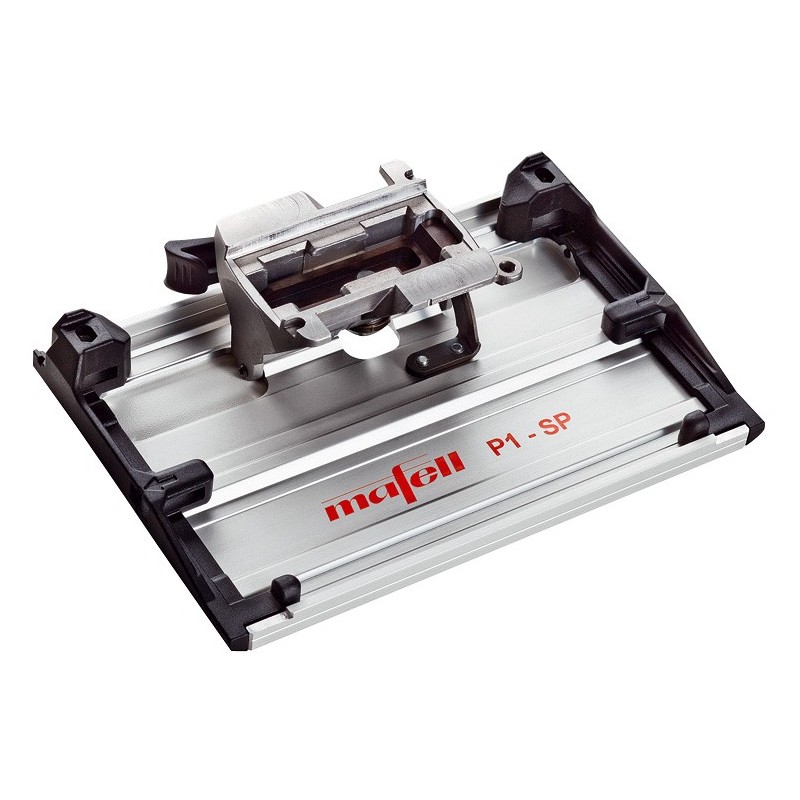

MAFELL P-SP Swivel Plate ±45°

The MAFELL P-SP Swivel Plate ±45° is a professional accessory designed for the MAFELL PS 2-18 and P1 cc jigsaws. It has been developed as a separate swivel plate to maintain the uncompromising stability of the standard base plate while enabling precise angled cutting.

The large swivel plate provides a secure support surface and high stability during cutting. The swivel angle can be precisely adjusted from -45° to +45° using the integrated scale, making the P-SP suitable for accurate bevel cuts in professional woodworking applications.

For an opposite-angle cut, the swivel plate can simply be rotated by 180°. This provides additional flexibility when working with different cutting directions and bevel configurations.

Another advantage is that the MAFELL F guide rail and parallel guide can still be used with all their functions together with the P-SP. This allows the accessory to be integrated into guided cutting setups while maintaining the versatility of the jigsaw system.

Technical specifications

• Product: P-SP Swivel Plate
• Article number: 205446
• Weight: 0.431 kg
• Swivel range: -45° to +45°

Applications

The P-SP is designed for:

• Precise bevel cuts
• Angled cuts from -45° to +45°
• Stable support during angled cutting
• Opposite-angle cuts by rotating the plate 180°
• Guided cutting with the MAFELL F guide rail
• Cutting with the MAFELL parallel guide

Advantages

The large support surface of the P-SP provides secure positioning and stability during cutting. The clearly defined scale allows bevel angles to be set precisely up to ±45°.

The 180° rotation function makes it possible to create opposite angles without changing the basic accessory setup. The swivel plate also retains compatibility with the MAFELL F guide rail and parallel guide with all functions.

Compatibility

• MAFELL PS 2-18 High-performance cordless jigsaw
• MAFELL P1 cc Precision jigsaw

Delivery contents

• 1 × MAFELL P-SP Swivel Plate
