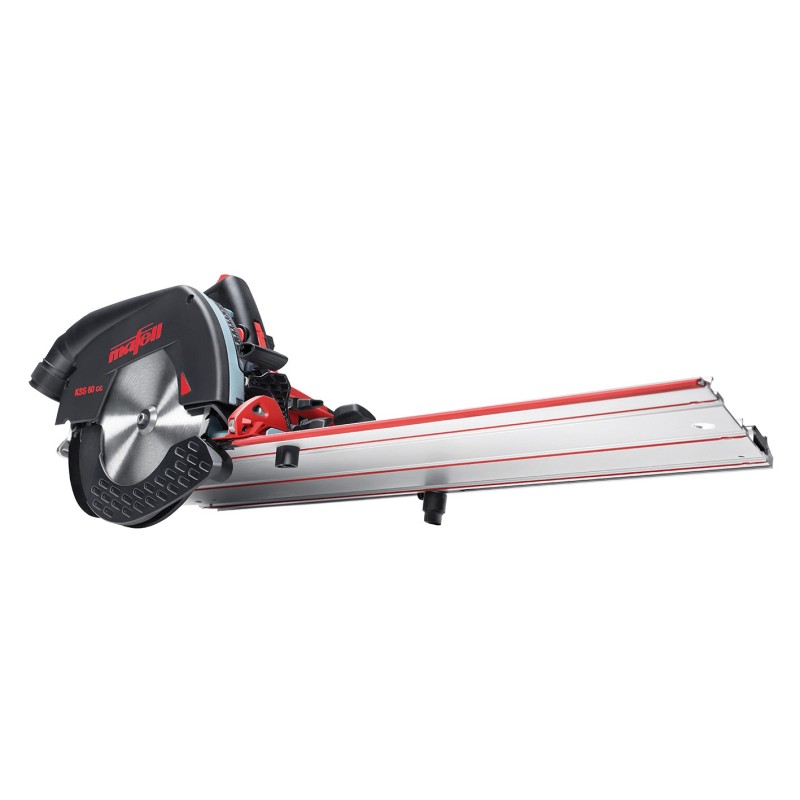

MAFELL KSS 60 cc Cross-Cutting System in Case
Reference: M-91B102
€1,220.16
Tax included
Tellimisel: 5-7 tööpäeva
Price without tax: 984€
- 1800 W CUprex motor — high power and torque for demanding professional work
- Up to 61 mm cutting depth — precise cutting with the integrated guide track
- 408 mm cutting length — ideal for long cross cuts
- FLIPPKEIL system — convenient plunge cutting without removing the riving knife
Stock:
On order: 5–7 business days
Warranty:
3 years
Power:
Electricity 230V
Type of delivery:
Set
Country of origin:
Germany
Brand:
Mafell
The MAFELL KSS 60 cc is a high-performance professional cross-cutting system designed for demanding woodworking, interior finishing, installation, renovation and construction applications. This version is supplied in a robust metal carrying case, providing convenient and secure transport and storage.
The system combines a powerful circular saw with an integrated guide track, creating a compact and highly precise solution for cross-cutting and other demanding sawing applications. With the guide track, the KSS 60 cc achieves a cutting depth of up to 61 mm at 0° and 47 mm at 45°. The maximum cutting length is 408 mm.
The powerful 1800 W CUprex motor provides high torque and excellent cutting performance. Its performance-optimised digital electronics and advanced control technology allow the speed to be continuously adjusted according to the material and application.
The patented FLIPPKEIL system makes plunge cutting particularly convenient. The riving knife does not have to be removed, making it easier to create recesses and cut-outs while maintaining a high level of operating safety.
The unique tilting system maintains a cutting depth of 47 mm with the guide track throughout the 0°–45° angle range. The guide track also features fixed and adjustable stops for precise angle cuts from -60° to +60°.
After completing a cut, the saw automatically returns to its starting position. The machine can also be removed from the cross-cutting track with a single button press and used independently, providing the versatility of a professional circular saw.
The rubberised underside provides excellent grip on the workpiece and helps protect sensitive surfaces. Bright integrated LEDs illuminate the working area for improved visibility and precise results.
Applications
- Cross cuts with guide track
- Rip cuts and cross-cutting
- Plunge cuts
- Recesses and cut-outs
- Door cutting
- Worktop cutting
- Solid wood
- Board materials
- Insulation materials
- Interior finishing
- Renovation and installation work
Technical specifications
| Specification | Value |
|---|---|
| Product reference | 91B102 |
| Power supply | 230 V / 50 Hz |
| Motor | CUprex universal motor |
| Nominal power input | 1800 W |
| No-load speed | 2700–4700 rpm |
| Cutting depth with guide track at 0° | 61 mm |
| Cutting depth with guide track at 45° | 47 mm |
| Cutting depth without guide track at 0° | 67 mm |
| Cutting depth without guide track at 45° | 53 mm |
| Cutting length | 408 mm |
| Tilt range | 0°–45° |
| Angle cuts | -60° to +60° |
| Weight with guide rail | 5.9 kg |
Delivery includes
- MAFELL KSS 60 cc cross-cutting system
- Parallel guide fence
- M guide track, max. cutting length 400 mm — Ref. 208170
- 5 mm Allen key — Ref. 093034
- TCT saw blade 185 × 1.4/2.4 × 20 mm, ATB, 32 teeth, for fine sawing in wood — Ref. 092489
- 4 m mains cable — Ref. 087323
- Metal carrying case 785 × 320 × 285 mm
The supplied configuration is the 91B102 carrying-case version.
- 1800 W CUprex motor — high power and torque for demanding professional work
- Up to 61 mm cutting depth — precise cutting with the integrated guide track
- 408 mm cutting length — ideal for long cross cuts
- FLIPPKEIL system — convenient plunge cutting without removing the riving knife
