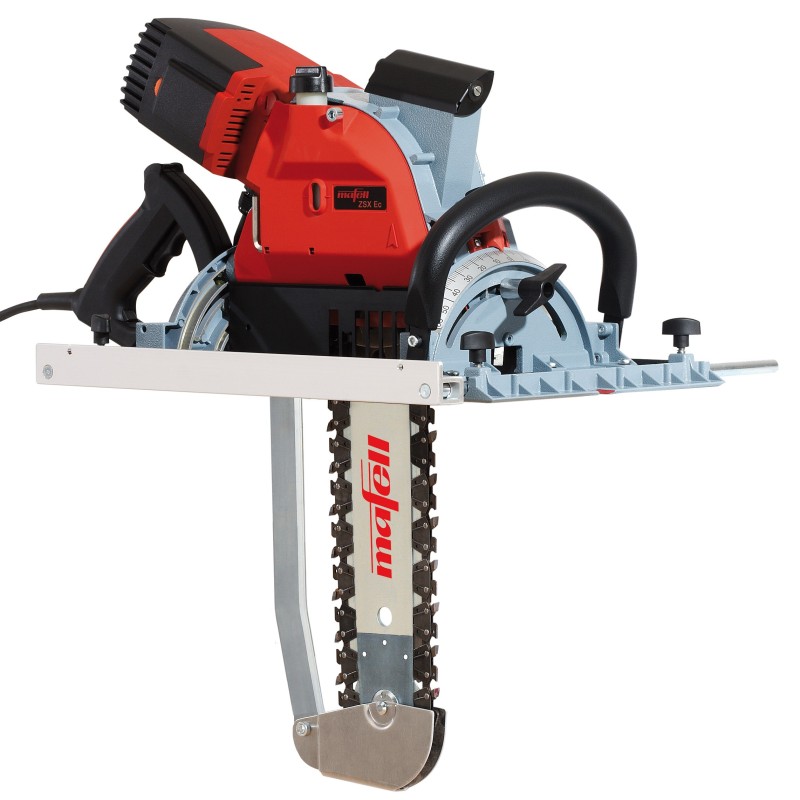

MAFELL ZSX Ec / 400 Q carpenter's chain saw

The MAFELL ZSX Ec / 400 Q is a powerful carpenter's chain saw designed for demanding timber construction and professional cutting applications. With a 400 mm cutting depth, it is suitable for processing large solid-wood components, glued laminated timber and insulation materials.

The 3000 W CUprex motor combines high power with optimized digital electronics and newly developed control technology. The speed can be adjusted to suit different materials and applications, while soft start, speed reduction, constant speed under load and overload protection support controlled and reliable operation.

The ZSX Ec / 400 Q can be tilted on both sides from -60° to +60°. A selectable detent function makes standard angles such as 0/90° and 45° on both sides quick and easy to set. The double swivel guide enables precise angled cuts, while the clearly readable scale supports accurate adjustment.

The combination of the MAFELL special chain and precise chain guidance on the guide rail delivers excellent cutting quality. The integrated constant scribe indicator remains clearly visible because the motor cooling air clears the cutting line. The large, adjustable chip ejection ensures efficient removal of chips during cutting.

Automatic chain lubrication features a precisely adjustable delivery rate, helping prevent oil splashes on the workpiece. Like other MAFELL timber construction hand-held circular saws, the ZSX Ec / 400 Q uses the MAFELL guide rail system, allowing guided cutting for demanding applications.

The ergonomic handle and switch arrangement is suitable for both right- and left-handed users. The rear handle integrates the on/off switch and switch lock, while the Softgrip handles provide comfortable control during extended work.

The saw is suitable for cross and rip cuts, angled cuts up to 60°, general timber framing and hip rafter cuts up to 60°. An optional rafter guide rail can be used for precise individual processing such as rafter and purlin sections.

Technical data

• Cutting depth: 400 mm
• Cutting depth at 45°: 282 mm
• Cutting depth at 60°: 199 mm
• Tilting range: -60° to +60°
• Nominal no-load speed: 3000–3600 rpm
• Nominal input: 3000 W
• Motor: universal motor
• Voltage/frequency: 230 V / 50 Hz
• Weight: 14.1 kg
• Article number: 925503

Delivery contents

• 1 × MAFELL parallel guide, article 204591
• 2 × 3/8" 400 P saw chains for ZSX Ec / 400 Q, article 006974
• 1 × 6 mm combination wrench
• 1 × 10 m power cable
• 1 × cardboard box
