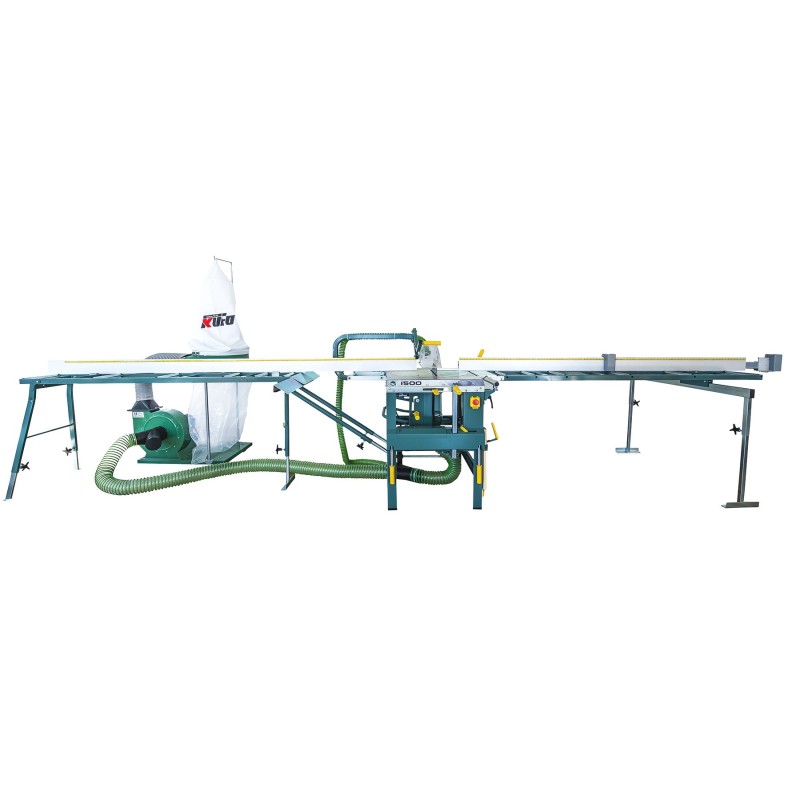

Gjerde 1500 MaxiCut – Maximum Flexibility and Cutting Power

Gjerdesagen® 1500 MaxiCut is a new generation Gjerde saw that introduces an entirely new principle of blade movement – it enables an exceptionally wide cutting range using just a lifting lever.

This is the most flexible Gjerde saw on the market, featuring quick-connect guide tubes – meaning fast, tool-free assembly, adjustment, and disassembly. The saw includes a precise angle reading scale on its rotating base, ergonomically positioned control functions, transport wheels, a practical tool box, and convenient front-accessible height lock. All settings are quick and user-friendly.

If necessary, you can also cut with an adjustable table, if the work requires even greater cutting range. The model also features a range of practical functions and a modern design. Dust removal connections: Ø100 mm next to the saw blade box and Ø50 mm on the plastic cover, ensure effective chip removal.

STANDARD EQUIPMENT

• Dome of 3 mm polycarbonate with a dust extraction connection (Ø50 mm)
• Saw blade Ø 360 mm – Z32
• Spacer holder (spaltekniv)
• Roller mechanism
• Guide rail with measuring tape and quick connect
• Motor with brake
• Support roller
• Simple saw blade height adjustment
• Toolbox on the front panel
• Transport wheels

ADDITIONAL EQUIPMENT

• Adjustable roller table with support stand
• Aluminum stop 2.6 m with material stopper
• Telescopic extension up to 3.8 m for the adjustable side
• Fixed roller table
• Aluminum stop 3 m for the fixed side
• Chip removal system (veneer remover)

TECHNICAL SPECIFICATIONS

• Table dimensions: 650 mm x 790 mm
• Working height: 885 mm
• Weight: 124 kg
• Saw blade: Material: carbide-tipped (Z=32) 360 mm x Ø 30 mm x 2.5 mm
• Spacer holder: Hardened steel: 3.0 mm
• Cutting depth: 104 mm @ 90° (vertical cut), 80 mm @ 45° (inclined angle)
• Motor options: 3-phase: 2.2 kW – 400 V
• Motor speed: 2700 rpm
• Peripheral speed: 49.5 m/s (standard blade)
• Power cable recommendations: 3-phase: 2.5 mm², max. length 20 m
• Fuses: 3-phase: 10 A slow
• Motor protection settings: 3-phase 400 V: 7 A
• Motor thermal protection
• Noise level according to Directive 2006/42/EC: Idle: 85 dB, Under Load: 87.5 dB
• Certificates and CE marking: CE-certified (approved by Danish Technological Institute)
