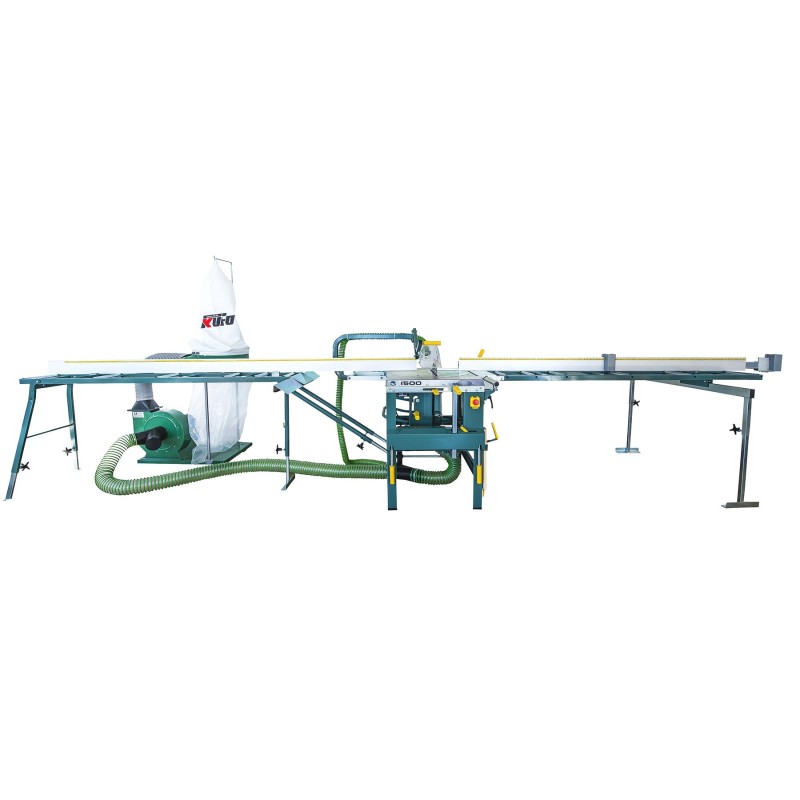

Gjerde 1500 MaxiCut – Maximum Flexibility and Cutting Capacity

• Gjerdesagen® 1500 MaxiCut is the latest-generation Gjerde saw featuring a completely new blade movement principle, allowing an exceptionally wide cutting range using only the lifting handle.

  It is one of the most flexible Gjerde saws available. Quick-connect guide tubes enable fast, tool-free assembly, adjustment and dismantling. The machine features a precise angle scale, ergonomically positioned controls, transport wheels, a practical tool box and an easily accessible front height lock.

  For applications requiring an even wider cutting range, the saw can also be used with an adjustable table. Dust extraction connections of Ø100 mm at the blade housing and Ø50 mm at the plastic guard provide efficient chip and dust removal.

  Standard Equipment

  • 3 mm polycarbonate guard with Ø50 mm dust extraction connection
  • Ø360 mm saw blade, Z32
  • Riving knife
  • Roller mechanism
  • Guide rail with measuring tape and quick connection
  • Motor with brake
  • Support roller
  • Easy blade height adjustment
  • Front tool box
  • Transport wheels

  Optional Equipment

  • Adjustable roller table with support stand
  • 2.6 m aluminium fence with material stop
  • Telescopic extension up to 3.8 m
  • Fixed roller table
  • 3 m aluminium fence
  • Chip and dust extraction system

  Technical Data

  Work table size: 650 × 790 mm
  Working height: 885 mm
  Weight: 124 kg
  Saw blade: carbide tipped, Z=32, 360 × Ø30 × 2.5 mm
  Riving knife: hardened steel, 3.0 mm
  Cutting depth: 104 mm at 90°, 80 mm at 45°
  Motor: single-phase, 2.2 kW, 230 V
  Motor speed: 2700 rpm
  Peripheral speed: 49.5 m/s
  Recommended power cable: 2.5 mm², max. 20 m
  Fuse: 16 A slow-blow
  Motor protection: 16 A
  Thermal motor protection: included
  Noise level: 85 dB no-load, 87.5 dB under load
  Certification: CE certified
