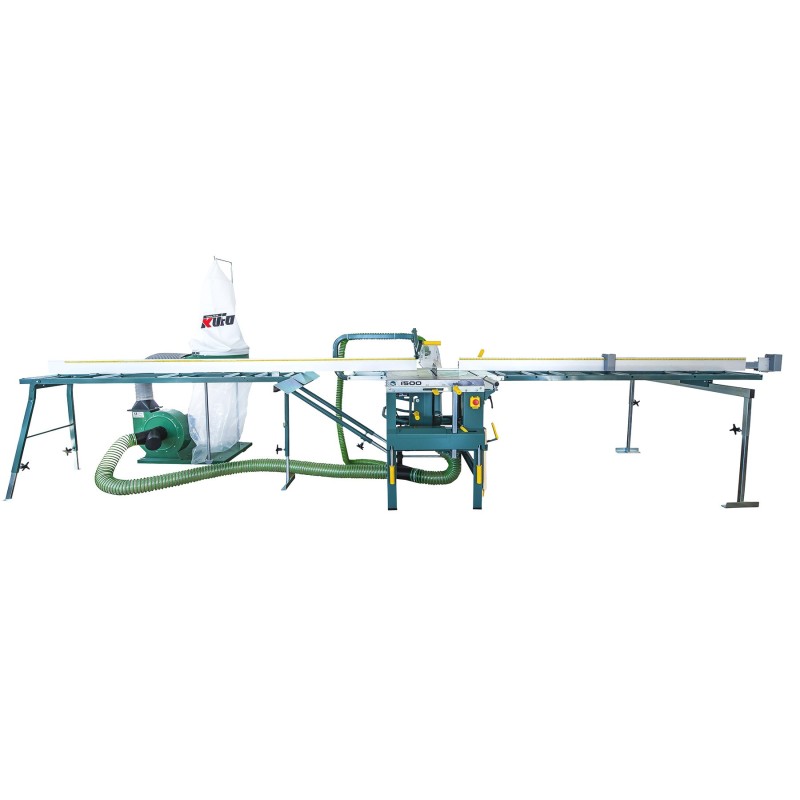

Gjerde 1500 MaxiCut – Maximum Flexibility and Cutting Power

The Gjerdesagen® 1500 MaxiCut is the latest generation of Gjerde saw, featuring a completely new blade motion principle – it allows an exceptionally wide cutting range using only a lever.

This is the most flexible Gjerde saw on the market, equipped with quick-connect guide bars – meaning fast, tool-free assembly, adjustment, and disassembly. The sled features a precise angle reading scale on the swivel base, ergonomically placed control functions, transport wheels, a practical tool box, and easily accessible height lock from the front. All settings are quick and user-friendly.

If necessary, you can also cut with an adjustable table, if the job requires an even greater cutting range. The model also includes a host of practical features and a modern design. Dust extraction connections: Ø100 mm at the sawblade box and Ø50 mm on the plastic cover, ensure efficient chip removal.

STANDARD EQUIPMENT

• Dome 3 mm polycarbonate with a dust extraction connection (Ø50 mm)
• Saw blade Ø 360 mm – Z32
• Cutting gap holder (spaltekniv)
• Roller mechanism
• Guide rail with measuring tape and quick-connect
• Engine with brake
• Support roller
• Easy saw blade height adjustment
• Toolbox in the front panel
• Transport wheels

ADDITIONAL EQUIPMENT

• Adjustable roll table with support stand
• Aluminum limiter 2.6 m with material stop
• Telescopic extension up to 3.8 m on the adjustable side
• Fixed roll table
• Aluminum limiter 3 m on the fixed side
• Chip removal system (veneer remover)

TECHNICAL DATA

• Table dimensions: 650 mm x 790 mm
• Working height: 885 mm
• Weight: 124 kg
• Saw blade: Material: carbide-tipped (Z=32) 360 mm x Ø 30 mm x 2.5 mm
• Cutting gap holder: Hardened steel: 3.0 mm
• Cutting depth: 104 mm @ 90° (vertical cut), 80 mm @ 45° (angled)
• Motor options: 3-phase: 2.2 kW – 230 V
• Motor speed: 2700 rpm
• Peripheral speed: 49.5 m/s (standard disc)
• Recommendations for power cable: 3-phase: 2.5 mm², max. length 20 m
• Fuses: 3-phase: 10 A slow
• Motor protection settings: 3-phase 230 V: 12 A
• Motor with thermal protection
• Noise level according to directive 2006/42/EC: Idle: 85 dB, Under load: 87.5 dB
• Certificates and CE mark: CE-certified (approved by Danish Technological Institute)
