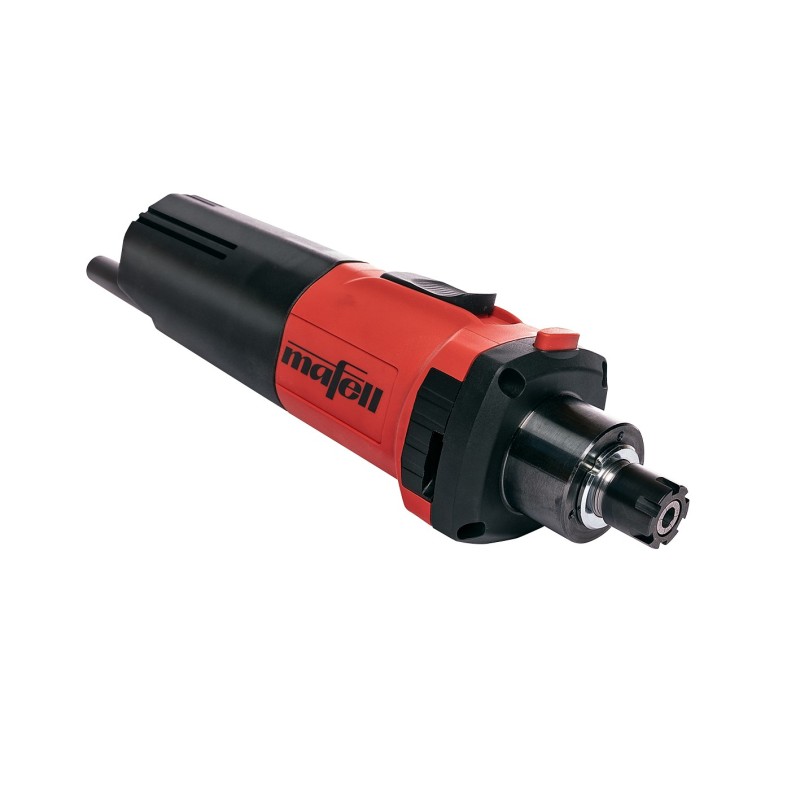

Milling motor Mafell FM 1000 PV-ER

Product Description

With the FM 800 / FM 1000, MAFELL has developed yet another milling motor manufactured in Germany. The high quality standards and well-thought-out details make the MAFELL milling motor the best partner in its performance class. Speed can be infinitely adjusted for any job. In addition, digital electronics control smooth starting, maintaining speed under load, reducing idle RPM, and overload protection. The FM 800 / FM 1000 seal protects the spindle and bearing from even the smallest particles, dust, and chips.

Application Area

• Model making, mold making, advertising technology, engraving, jewelry, electronics, stone masonry
• Perfectly suitable for CNC mills, grinding machines, and flexible shafts
• For processing wood, metal, plastic, foam, polystyrene, stone

Technical Specifications

• Power: 1000 W
• Motor: 230 V / 50 Hz
• Nominal idle speed: 4,000 – 25,000 1/min
• Portal connection: M8 / 4-pole
• Power supply PV operation: 8 - 56V
• Portal mounting (drill holes): 6 x M6
• Clamping collar/chuck: 8 mm
• Dimensions (L x W x H): 280 x 92 x 85 mm
• Noise level: 71 dB (A)
• Weight: 1.65 kg

Included in the package

• Chuck ER 16, 8 mm
• Key ER 16M
• Electric cable, 0.75 + 4 m
