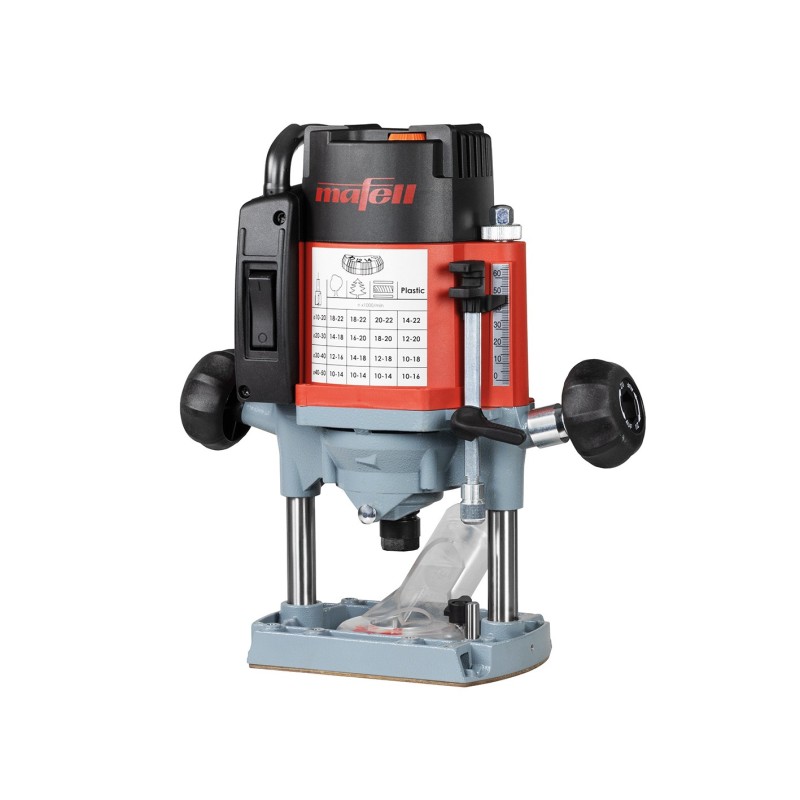

MAFELL LO 65 Ec MidiMAX router in T-MAX

The MAFELL LO 65 Ec MidiMAX router is designed for demanding professional routing work where high power, precise adjustment and reliable handling are essential. Its 2600 W CUprex high-performance motor delivers substantial power and high torque for efficient routing in solid wood and board materials.

The electronically controlled motor allows the speed to be continuously adjusted between 10,000 and 22,000 rpm. This makes it possible to adapt the machine precisely to different materials, applications and router-bit diameters. The optimized combination of motor, digital electronics and control technology allows the LO 65 Ec to handle both delicate precision work and demanding template-routing applications.

The 0–65 mm routing depth can be precisely adjusted using the fine-adjustment mechanism and securely fixed. This makes repeated routing operations easier and reduces the need for subsequent corrections. The adjustable depth, speed and stop settings give the machine a broad range of professional applications.

Changing the router bit is designed for practical workshop use. The machine can be placed upside down to provide convenient access to the spindle, while the spindle lock simplifies cutter changes. The tool holder supports 6–12 mm and 1/2" collets, while the supplied adapter allows the use of router bits with an M 12 × 1 internal thread.

The LO 65 Ec MidiMAX is suitable for profile and groove routing, fitting recesses, dovetail joints and recesses in stair construction. Typical materials include solid wood and board materials. The optional LO-FA router adapter can expand the machine's capabilities for template stops, guide-rail routing, parallel guiding and circle cutting.

The supplied Ø30 mm template guide makes the MidiMAX configuration particularly suitable for template-based routing. The extraction hood supports connection to a suitable dust extraction system, while the T-MAX transport and storage case keeps the machine and supplied accessories organized during transport and storage.

The machine also features a voltage-drop switch, helping prevent uncontrolled restart after an interruption in the power supply.

Technical data

• Article number: 91C750
• Routing depth: 0–65 mm
• Tool holder: 1/2" / 6–12 mm
• No-load speed: 10,000–22,000 rpm
• Rated input: 2600 W
• Weight: 6.9 kg
• Motor: universal motor, 230 V / 50 Hz

Delivery contents

• 1 × Ø30 mm template guide
• 1 × adapter for router bits with M 12 × 1 internal thread
• 1 × 22 mm open-end wrench
• 1 × extraction hood
• 1 × 4 m connection cable
• 1 × T-MAX transport and storage case
