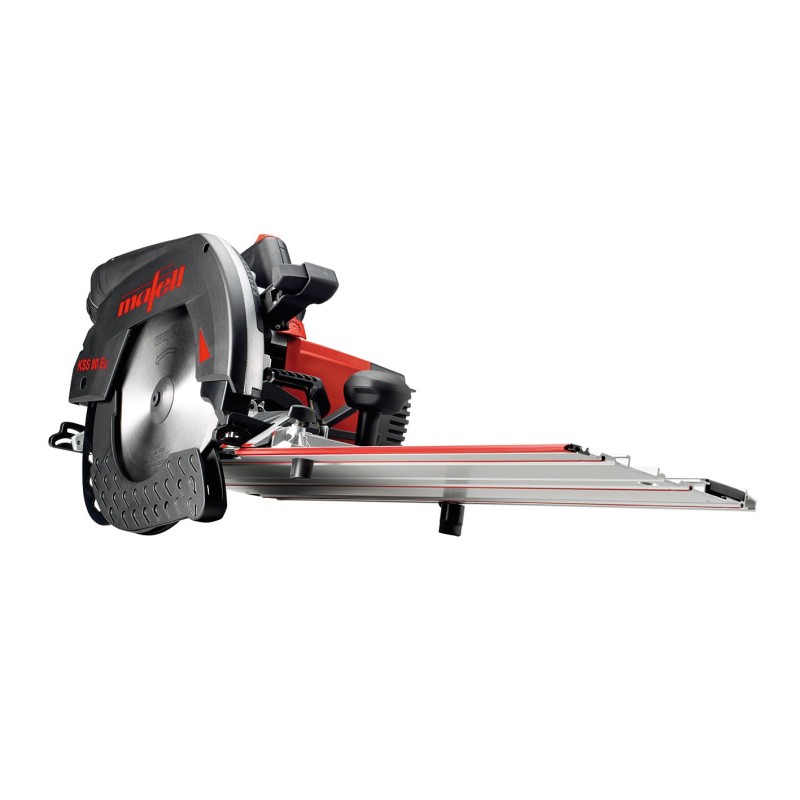

Circular saw on the rail KSS 80 Ec / 370

Product Description

The new MAFELL KSS 80 Ec / 370 cross-cutting system combines power and precision with ease of use and ergonomic design. These features make the machine a unique woodworking system. Once the cut is made, the saw automatically returns to the starting position. The maximum cutting length, using the full cutting depth, is 370 mm (14 9/16 inches). High power and high torque take on a whole new meaning with the new high-performance CUprex motor. The saw comes with performance-optimized digital electronics and newly developed control technology. The saw speed is continuously variable according to the material properties and usage. There is no longer a need to loosen the blade guard – the FLIPPKEIL offers optimal user-friendliness and safety when cutting pockets.

Applications

• Cross cuts with guide rail
• Rip and cross cuts
• Cutting of pockets and grooves
• Suitable materials include solid wood, panel materials, insulation materials, doors, worktops, as well as interior finishing and renovation materials

Technical Specifications

• Cutting depth at 0° bevel: 82 mm
• Cutting depth at 45° bevel: 55.5 mm
• Cutting depth at 0° without bevel: 88 mm
• Cutting depth at 60° bevel: 0 – 38.5 mm
• Bevel range: 0 – 60°
• Cutting length with bevel: 370 mm
• Cutting angle: – 60° – + 50°
• Nominal no-load speed: 2250 – 4400 1/min
• Power: 2300 W
• Weight: 8.3 kg
• Motor: 230 V / 50 Hz

Included in the package

• TCT saw blade 237 x 1.8/2.5 x 30 mm, AT, 12 teeth, rip cut blade (092590)
• Parallel guide (205323)
• Hose connection (205290)
• Wrench 5 mm (093034)
• Bevel guide max. cutting length 370 mm (208171)
• Electric cable 4 m (087888)
