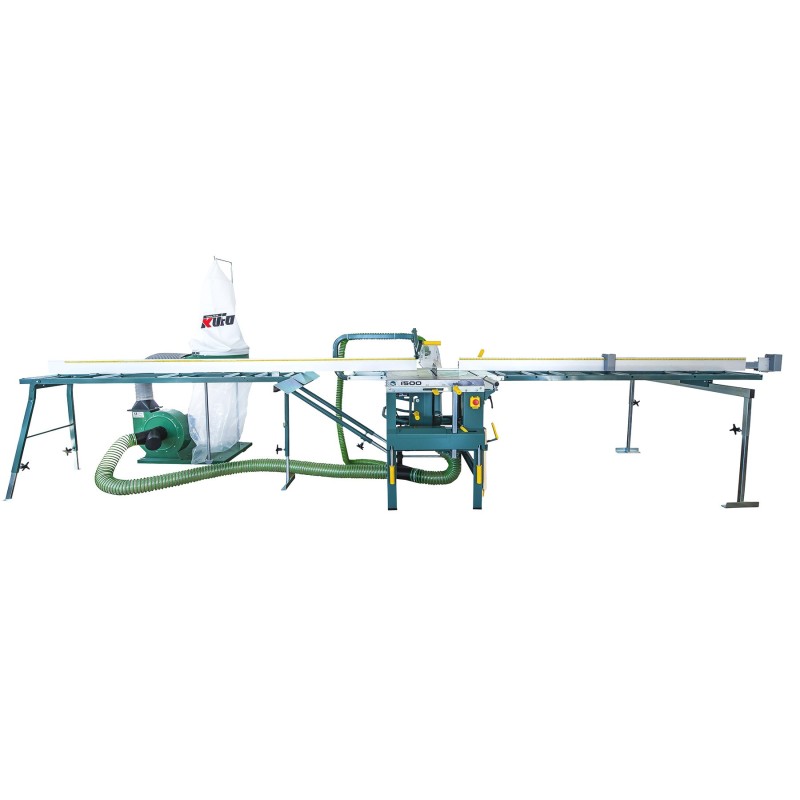

Gjerde 1500 MaxiCut Maximum Flexibility and Cutting Capacity

Gjerdesagen® 1500 MaxiCut is the latest-generation Gjerde saw featuring a completely new blade movement principle, providing an exceptionally wide cutting range using only the lifting handle.

It is one of the most flexible Gjerde saws on the market. Quick-connect guide tubes enable fast, tool-free assembly, adjustment and dismantling. The machine features a precise angle scale on the rotating base, ergonomically positioned controls, transport wheels, a practical tool box and an easily accessible front height lock.

An adjustable table can also be used when an even greater cutting range is required. Dust extraction connections of Ø100 mm at the blade housing and Ø50 mm at the plastic guard ensure efficient removal of sawdust and chips.

Standard Equipment

• 3 mm polycarbonate guard with Ø50 mm dust extraction connection
• Ø360 mm saw blade – Z32
• Riving knife
• Roller mechanism
• Guide rail with measuring tape and quick connection
• Motor with brake
• Support roller
• Easy saw blade height adjustment
• Tool box in front panel
• Transport wheels

Optional Equipment

• Adjustable roller table with support stand
• 2.6 m aluminium fence with material stop
• Telescopic extension up to 3.8 m
• Fixed roller table
• 3 m aluminium fence
• Chip and dust extraction system

Technical Data

• Work table dimensions: 650 × 790 mm
• Working height: 885 mm
• Weight: 124 kg
• Saw blade: carbide tipped, Z=32, 360 × Ø30 × 2.5 mm
• Riving knife: hardened steel, 3.0 mm
• Cutting depth: 104 mm at 90°, 80 mm at 45°
• Motor: 3-phase, 2.2 kW, 230 V
• Motor speed: 2700 rpm
• Peripheral speed: 49.5 m/s
• Recommended power cable: 3-phase, 2.5 mm², max. 20 m
• Fuses: 3-phase, 10 A slow-blow
• Motor protection setting: 3-phase 230 V – 12 A
• Thermal motor protection: included
• Noise level according to Directive 2006/42/EC: 85 dB no-load, 87.5 dB under load
• Certification: CE certified, approved by the Danish Technological Institute
