Features

• Very handy, lightweight machine that is easy to use. Ensures comfortable and ergonomic working conditions.

• Equipped with an innovative interchangeable head system. Grinding heads are attached and removed with one click.

• Segmented grinding head with a rotating edge segment. This allows grinding transitions from wall to wall and from wall to ceiling.

• The head rotation follows the movement of the machine without interruption.

• Reliable power transmission and high flexibility thanks to the flexible drive shaft. "FLEX technology" established over decades. This design principle has minimized the weight of the Giraffe's head, facilitating handling.

• Electronics: controlled constant speed, soft start, overload protection, and speed selection via an adjustable wheel.

• Easy handling: optimal balance between the motor and grinding head.

• Efficient dust removal from between the brush ring and the grinding head.

• Possibility to connect to a FLEX safety vacuum cleaner using the FLEX clamp system on the guide tube.

• Dust-proof on/off switch.

• Highly flexible thanks to the optional 500 mm extension (accessory) for high rooms (can be attached without tools).

• Depending on the selection of sandpaper, ideally suitable for grinding gypsum boards, solid insulation boards, and surface prep for painting.

• Very large areas and rooms up to 3.40 m in height can be processed thanks to the GM 340 accessory.

• Innovative textile transport system allows easy transportation of the machine and accessories. The Giraffe® is immediately ready for use.

• The grinding head mounted on a cardan joint provides great flexibility and optimal adjustability for grinding walls and ceilings.

Technical specifications

• Power consumption: 710 W

• Output power: 410 W

• Voltage: 230 V

• Frequency: 50/60 Hz

• Head diameter: 225 mm

• Idle speed: 1100 - 1650 rpm

• Speed, unloaded MH-T: 3800 - 5700 1 rpm

• Speed, unloaded MH-X: 3100 - 4600 1 rpm

• Speed, unloaded: 3800 - 5700 rpm

• Head tilt angle: 100°

• Tool holder, wall and ceiling grinding hook and lock

• Cable length: 5.0 m

• Length: 1520 mm

• Weight: 4.2 kg

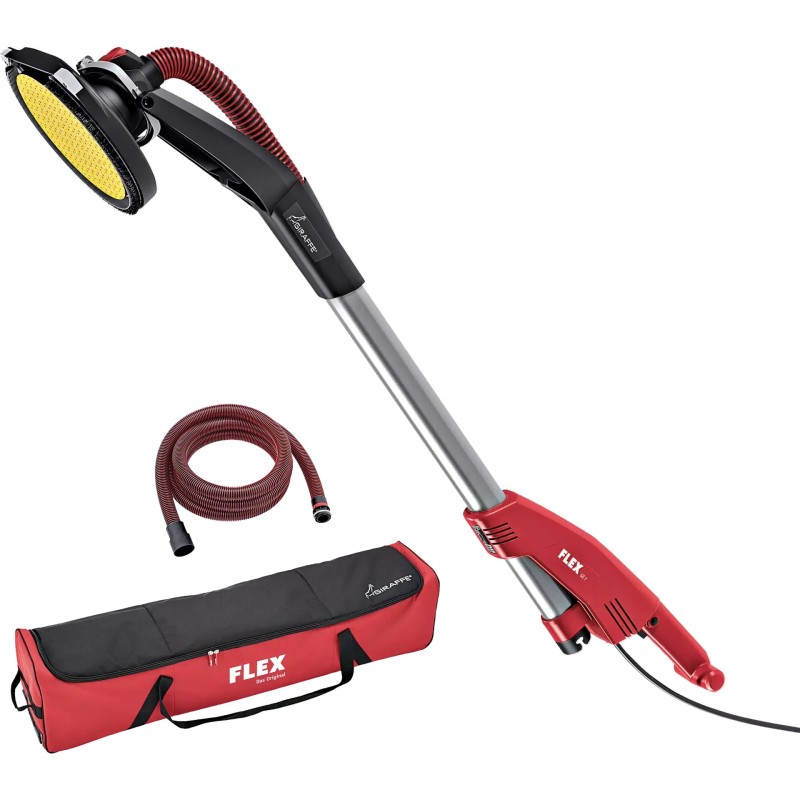

Package Content

• 1 rotating grinding head with edge segment (457183)

• 1 clamp-type quick-release ring red (406023)

• 1 anti-static suction hose with additional air control (406708)

• 1 carrying case (408867)
