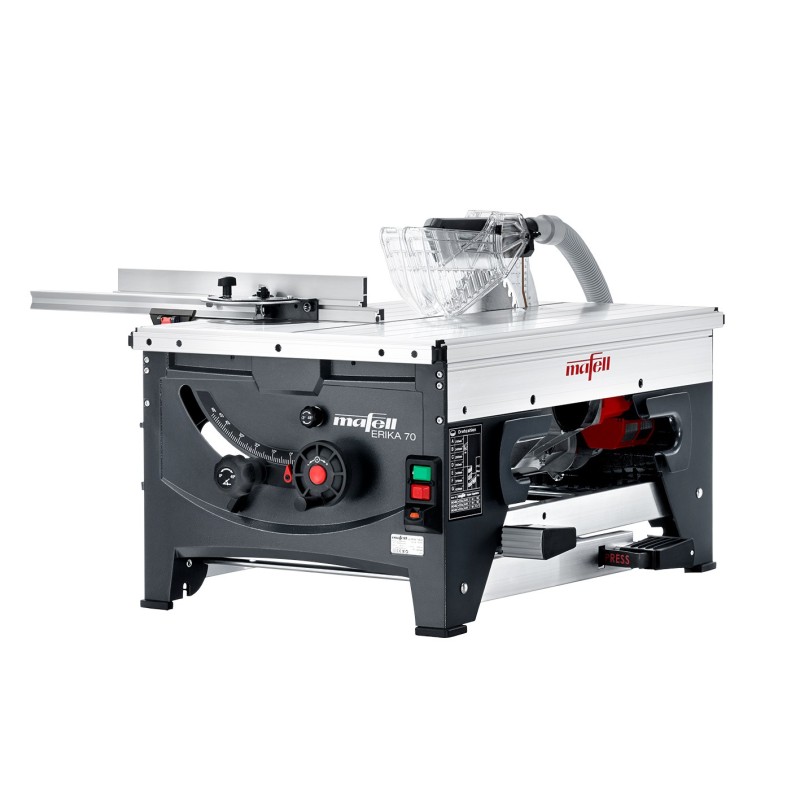

MAFELL ERIKA 70 under-table pull saw

The MAFELL ERIKA 70 is a versatile mobile under-table pull saw designed for precise crosscuts, rip cuts and demanding workshop and construction-site applications. With a maximum cutting height of 72 mm, a pull length of 330 mm and a robust 525 × 818 mm table surface, the machine combines the functions of a pull saw and table saw in one compact system.

The powerful 2250 W CUprex high-performance motor is combined with E-control electronics and continuously adjustable speed from 2,050 to 4,300 rpm. This allows the ERIKA 70 to be adapted to different materials and applications. With the appropriate original MAFELL saw blade, the machine can process not only solid wood and sheet materials, but also parquet, laminate, plastics and aluminium profiles.

The integrated Quickstand allows the ERIKA 70 to be set up on four stable aluminium legs within seconds. Protective rubber feet improve stability and help prevent the machine from slipping or being damaged when positioned on the job site. An integrated levelling system also allows uneven ground to be compensated for conveniently by foot pressure.

The newly developed dust channel collects sawdust efficiently and guides it safely towards the rear extraction connection. Together with a suitable extraction system, this improves dust collection and contributes to a cleaner working environment. The logically arranged controls are positioned on the front of the machine for easy operation.

The sensor-controlled work light provides excellent visibility of the cutting area. The partially transparent blade guard completely covers the saw blade and contributes to safe operation. A voltage-drop switch prevents uncontrolled restarting after an interruption to the power supply.

For precise work, the ERIKA 70 features an extremely stable table profile with a continuous dovetail profile for convenient and secure attachment of stops and accessories. The saw can be swivelled from -3° to +48°, enabling accurate bevel cuts. The riving knife can also be lowered when required for concealed cuts.

The ERIKA 70 is supplied with a universal stop with stop rail, a 225 mm carbide-tipped saw blade, extraction set, Quickstand, push stick, clamping piece, 6 mm hex key and 4 m power cable. Its combination of mobility, cutting performance, adjustable speed and extensive accessory compatibility makes it a professional solution for woodworking and construction applications.

Technical data

• Cutting height: 1–72 mm
• Cutting height at 45°: 1–49 mm
• Swivelling range: -3° to +48°
• Pull length: 330 mm
• Table working area: 525 × 818 mm
• Working height without stationary setup: 415 mm
• Working height with stationary setup: 891 mm
• No-load speed: 2,050–4,300 rpm
• Nominal input: 2,250 W
• Extraction connection: Ø 58 mm
• Cutting speed: 24.2–50.7 m/s
• Weight including universal stop: 37.2 kg
• Motor: universal motor, 230 V / 50 Hz
• Article number: 972001

Delivery contents

• 1 × HM saw blade 225 × 1.8/2.5 × 30 mm, Z 32, WZ, article 092460
• 1 × push stick, article 034901
• 1 × 6 mm hex key, article 093081
• 1 × extraction set with 2 connectors, article 093639
• 1 × clamping piece, article 038294
• 1 × Quickstand
• 1 × 4 m power cable
• 1 × universal stop with stop rail, article 207912
