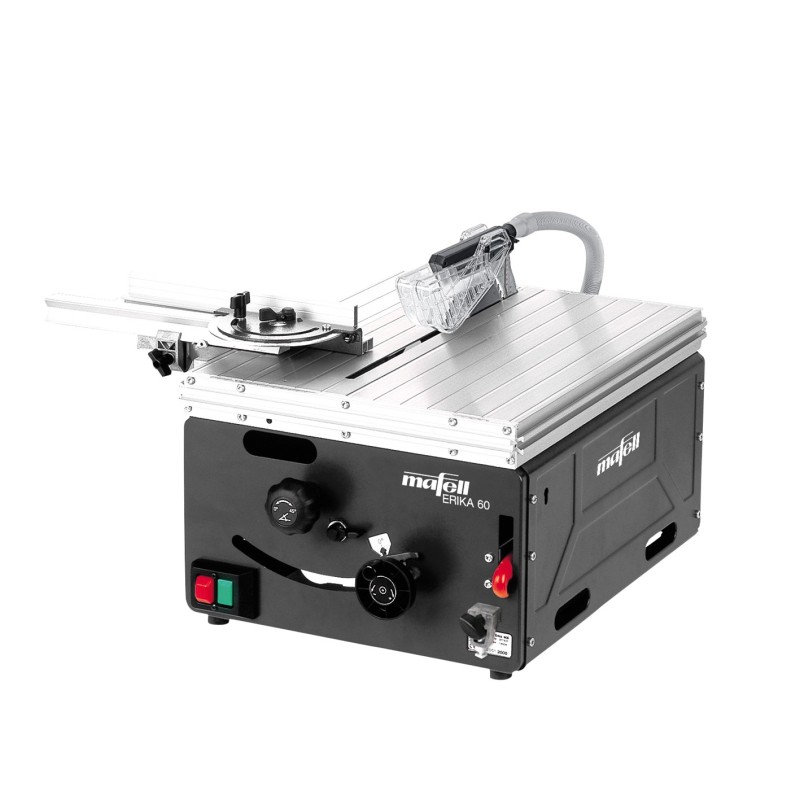

MAFELL ERIKA 60 under-table pull saw

The MAFELL ERIKA 60 under-table pull saw is a compact and highly mobile professional saw designed for demanding work on construction sites and in workshops. With a weight of only 22.2 kg, it can be transported easily between different work locations, from basement to attic.

The ERIKA 60 combines the functionality of a pull saw and table saw in one machine. It is suitable for cross-cuts and longitudinal cuts, as well as bevel cuts up to 47°. Typical materials include solid wood, sheet materials, parquet and laminate, aluminium profiles and plastics.

The maximum 61 mm cutting height provides substantial capacity for a compact machine. The pull function offers a 215 mm pull length, and at a material thickness of 12 mm the machine achieves a cutting length of 215 mm.

The -2° to 47° swivelling range can be adjusted conveniently using the large rotary knob. The pull function, cutting height and saw blade position can be operated comfortably via a single lever. Two scales provide precise cutting-depth adjustment for the riving knife in its normal position and in its lowered position for concealed cuts.

For concealed cuts, the riving knife can be lowered easily. This expands the ERIKA 60's application range while maintaining convenient operation. A voltage-drop switch prevents uncontrolled restarting after an interruption to the power supply.

The newly developed dust channel optimises airflow in the extraction system, allowing chips to be captured more effectively by the connected dust extractor and helping to reduce dust during work. The controls are logically arranged at the front of the machine for straightforward operation.

The ERIKA 60 features a continuous dovetail profile around the machine, allowing stops and special accessories to be mounted securely and conveniently. Accessories from the previous ERIKA 55 and ERIKA 60 E models remain compatible with the new ERIKA 60.

The machine can also be equipped with the optional stationary setup, increasing the working height from 300 mm to 847 mm for stationary applications.

Technical data

• Cutting height: 2–61 mm
• Cutting height at 45°: 2–39 mm
• Swivelling range: -2° to 47°
• Pull length: 215 mm
• Tabletop working area: 412 × 544 mm
• Rated no-load speed: 5500 rpm
• Rated input power: 1300 W
• Working height without stationary setup: 300 mm
• Working height with stationary setup: 847 mm
• Motor: Universal motor, 230 V / 50 Hz
• Weight: 22.2 kg
• Article number: 972101

Delivery contents

• 1 × HM saw blade 190 × 1.2/2.0 × 30 mm, Z 36, WZ, for universal use in wood, article 092550
• 1 × universal stop with stop rail, article 207914
• 1 × extraction hose with 2 connectors, article 093639
• 1 × clamping piece
• 1 × push stick, article 034901
• 1 × 5 mm hex key, article 093034
• 1 × 4 m power cable
• 1 × cardboard box
