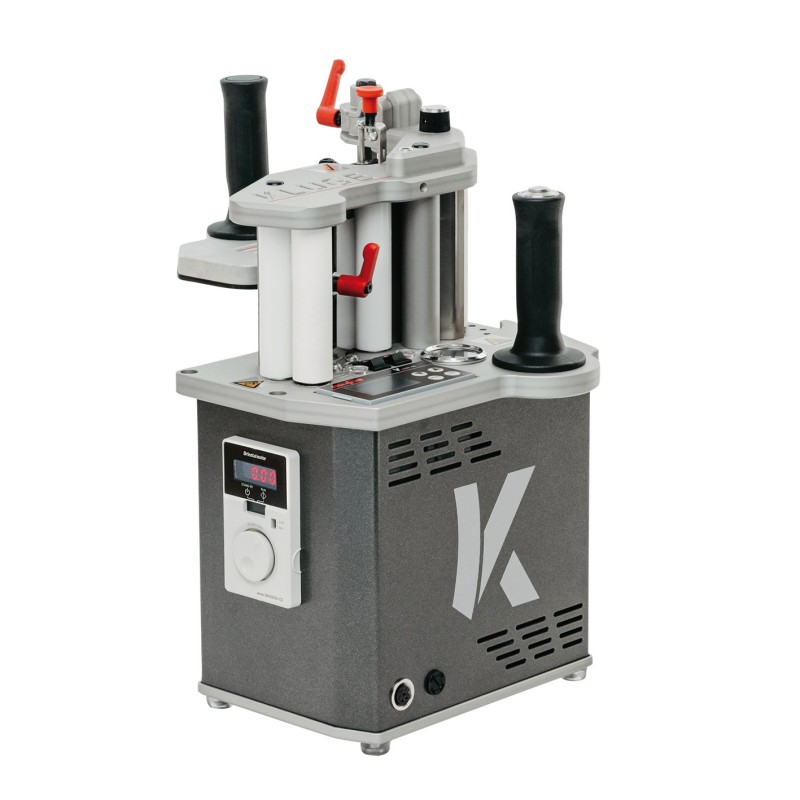

Edge banding machine HIT-M 103 SA L-MAX's

Product Description

HIT-M is the first and only portable device for creating zero joints. Using hot air injection technology, it can process all standard zero edge joints - without the need for additional adhesive. HIT-M can be used flexibly and is ideal for complex components. It especially shows its strengths with free forms or details with a narrow radius. It can perfectly process straight, beveled, curved, and round materials, as well as molded parts. Surfaces with an incline of up to 55° are easy to process. The working temperature is reached a few seconds after the device is turned on. With HIT-M, there is no need to deal with time-consuming color changes or cleaning adhesive pots.

Application Area

• Optimally suited for larger framed details and for use on construction sites.
• Panel materials with an edge height of up to 65 mm

Technical Specifications

• Nominal voltage: 230 V
• Nominal power: 3050 W
• Edge height: 10 – 103 mm
• Angle range: 0 – 50°
• Edge thickness: 0.4 – 3.0 mm
• Min. inner radius: 10 mm
• Heating time: 30 s
• Max. temperature: 520° C
• Feed speed (variable): 1 – 5.5 m/min
• Weight: 10.9 kg
• Dimensions: (L x W x H) 220 x 160 x 400 mm
• Connection pressure: 6 – 10 bar

Included in the Package

• 1 rotating support plate
• Tanos systainer, size 5
• 2 locking bolts
• 1 cleaning brush
• 1 hex socket 3 mm
• 1 hex socket 4 mm
• 1 hex socket 5 mm
• 1 hex socket 6 mm
• 1 connection set 5 m (voltage/air pressure)
