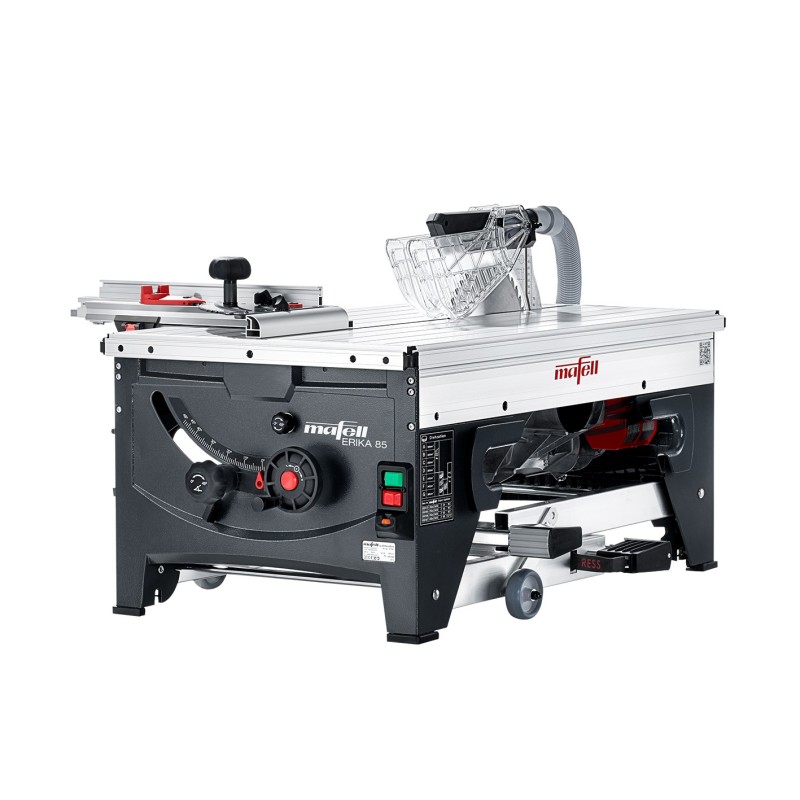

Plate saw ERIKA 85

Product Description

With the world's first circular saw, ERIKA has become the embodiment of mobile sawing since its introduction. After nearly 40 years of experience, the current generation is now equipped with everything that users expect from a modern circular saw. Thanks to the built-in legs, ERIKA can be set up on four stable aluminum legs in just a few seconds. The protective rubber caps on the legs also prevent slipping and wobbling. A unique suction channel concentrates the sawdust and draws it back. This new development allows your vacuum cleaner to be used even more effectively. The result: clean work on a clean construction site! ERIKA leaves no questions unanswered. The clearly designed control elements are logically placed on the front of the machine! Thanks to the E-control electronic system and the corresponding MAFELL original saw blade, it is possible to cut not only wood but also other materials such as plastics or aluminum profiles. Other advantages of ERIKA 85: Extremely stable table profile, an angle range of -3° to 48°, and a retractable blade guard with a maximum cutting length of over 430 mm.

Applications

• Cross and longitudinal cuts
• Circular saw bench functionality
• Bevel cuts up to 48°
• Suitable materials include solid wood, sheet materials, parquet and laminate flooring, aluminum profiles, and plastics

Technical Specifications

• Cutting depth: -1 – 85 mm
• Cutting depth at 45°: -1 – 59 mm
• Cutting angle: – 3 – +48°
• Cutting length: 430 mm
• Table size: 525 x 915 mm
• Working height without legs: 415 mm
• Working height with legs: 891 mm
• Nominal idle speed: 2,050 - 4,300 rpm
• Power: 2,500 W
• Vacuum connection: 58 mm
• Weight: 40.0 kg
• Motor: 230 V / 50 Hz

Included in the package

• TCT saw blade 250 x 1.8/2.80 x 30 mm, AT, 40 teeth, universal, wood (092465)
• Extension kit on wheels (202889)
• Material push stick (034901)
• Saw blade wrench 6 mm (093081)
• Vacuum connection kit with 2 connections (093670)
• Foldable legs / Quickstand
• Electric cable 4 m (087847)
• Multi-purpose guide MFA with angle lock (207980)
