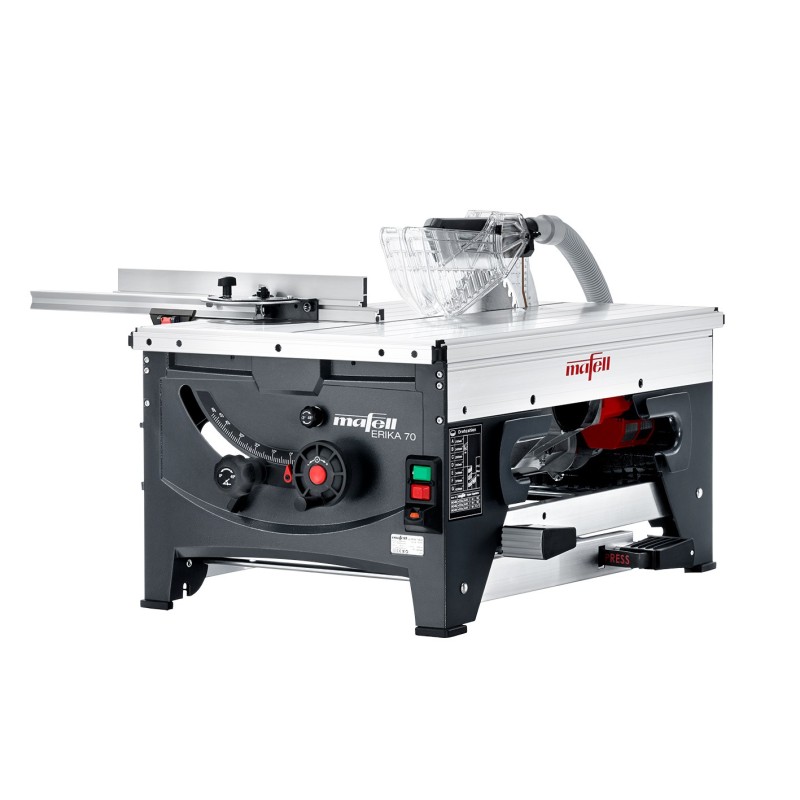

Plate saw ERIKA 70

Product Description

Since its introduction, the world's first circular saw has made ERIKA a symbol of mobile sawing. With nearly 40 years of experience, the current generation is now equipped with everything users expect from a modern circular saw. Thanks to the built-in legs, ERIKA can be placed on four stable aluminum legs in just a few seconds. The protective rubber caps on the legs also prevent slipping and wobbling. The unique suction channel concentrates the sawdust and pulls it backward. Thanks to this new development, your vacuum cleaner is used even more efficiently. The result: clean work on a clean construction site! ERIKA leaves no questions unanswered. The clearly designed control elements are logically arranged at the front of the machine! Thanks to the E-control electronic system and the corresponding MAFELL original saw blade, it is possible to cut not only wood but also other materials such as plastics or aluminum profiles. ERIKA 70 has many advantages: Extremely stable table profile, tilt range from -3° to 48°, and a retractable blade guard with a maximum cutting length of over 340 mm.

Application Areas

• Cross and longitudinal cuts
• Circular saw bench functionality
• Bevel cuts up to 48°
• Suitable materials include solid wood, board materials, parquet and laminate floors, aluminum profiles, and plastics

Technical Specifications

• Cutting depth: 1 – 72 mm
• Cutting depth at 45°: 1 – 49 mm
• Cutting angle: – 3 – +48°
• Cutting length: 330 mm
• Table size: 525 x 818 mm
• Working height without legs: 415 mm
• Working height with legs: 891 mm
• Nominal no-load speed: 2,050 - 4,300 rpm
• Power: 2,250 W
• Dust extractor connection: 58 mm
• Weight: 37.2 kg
• Motor: 230 V / 50 Hz

Included in the Package

• TCT saw blade 225 x 1.8/2.5 x 30 mm, AT, 32 teeth, universal, wood (092460)
• Universal guide with extension (201611)
• Material push stick (034901)
• Saw blade wrench 6 mm (093081)
• Vacuum connection kit with 2 connections (093639)
• Folding legs / Quickstand
• Electric cable 4 m (087847)
