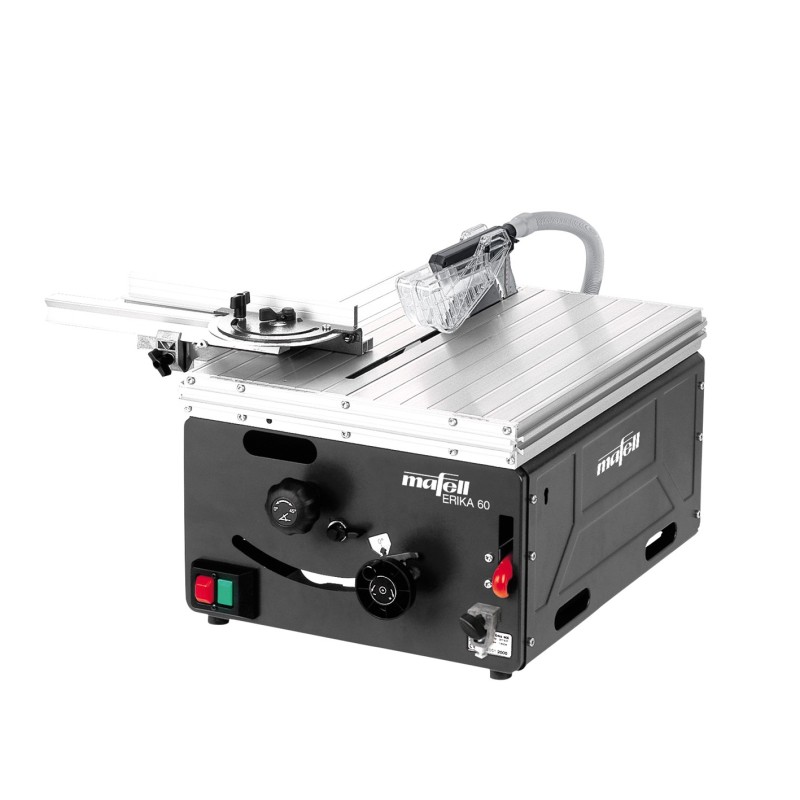

Plate saw ERIKA 60

Product Description

Thanks to the optimal airflow in the suction channel, dust can be removed more easily with the vacuum cleaner. Weighing 22.2 kg (48.9 lbs), this ultra-light device is convenient to use on any floor. Whether in the basement or the attic – the ERIKA 60 can be quickly and effortlessly carried from one workplace to another. Using the ERIKA 60 is simple due to its design concept. The clearly designed control elements are logically placed on the front of the machine. More than 30 years of experience has gone into every detail. Stability where needed – on the table! When cutting, the master applies pressure to the workpiece, and thus also to the workbench. Attention ERIKA users: All accessories from the previous ERIKA 55 and ERIKA 60 models are still compatible with the new ERIKA 60.

Application Area

• Cross and longitudinal cuts
• Table saw functionality
• Bevel cuts up to 47°
• Suitable materials include solid wood, panel materials, parquet and laminate floors, aluminum profiles, and plastics

Technical Specifications

• Cutting depth: 2 – 61 mm
• Cutting depth at 45°: 2 – 39 mm
• Cutting angle: – 2 – + 47°
• Cutting length: 215 mm
• Table dimensions: 412 x 544 mm
• Working height without legs: 300 mm
• Working height with legs: 847 mm
• Nominal no-load speed: 5500 1/min
• Power: 1300 W
• Weight: 22.2 kg
• Motor: 230 V / 50 Hz

Included in the package

• TCT saw blade 190 x 1.2/2.0 x 30 mm, AT, 36 teeth, universal, wood (092550)
• Universal guide with extension (200941)
• Allen key 5 mm (093034)
• Vacuum hose with two connectors (093639)
• Material push stick (034901)
• Electric cable 4 m (097765)
