Free Mafell FM 1000 PV-WS

Product Description

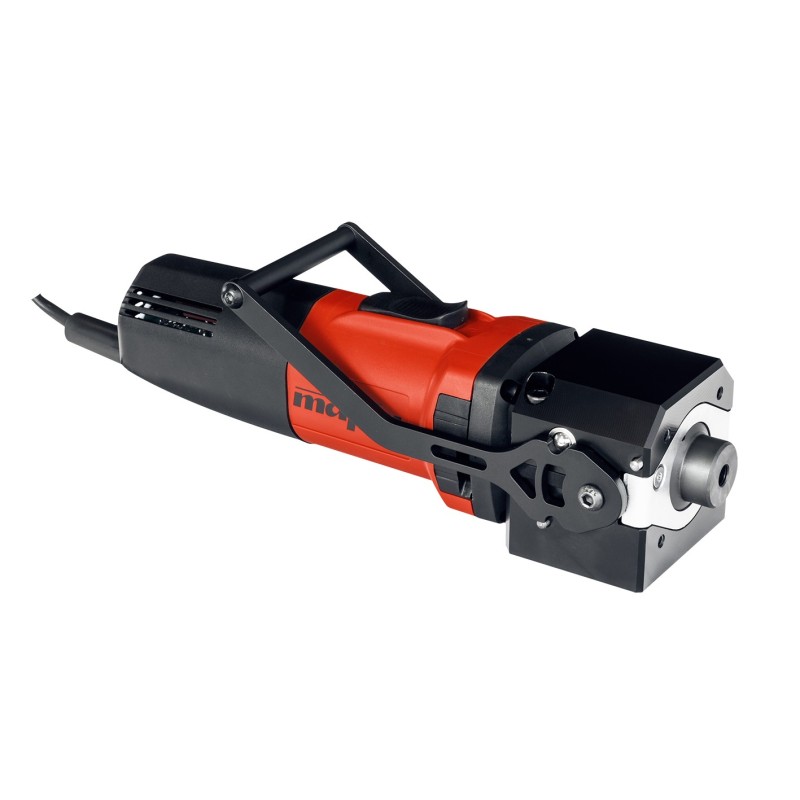

With the FM 800 / FM 1000, MAFELL has developed another milling motor made in Germany. High quality standards and well-thought-out details make the MAFELL milling motor the best partner in its performance class. Speed can be infinitely adjusted for each task. In addition, digital electronics control smooth starting, maintaining constant speed under load, reducing idle speed, and overload protection. The FM 800 / FM 1000 seal protects the spindle and bearing from even the smallest particles, dust, and chips.

Application Area

• Model making, mold making, advertising technology, engraving, jewelry, electronics, stoneworking
• Perfectly suitable for CNC milling machines, grinding machines, and flexible shafts
• For processing wood, metal, plastic, foam, polystyrene, stone

Technical Specifications

• Power: 1000 W
• Motor: 230 V / 50 Hz
• Nominal idle speed: 4,000 – 25,000 rpm
• Portal connection: M8 / 4-pole
• Power supply PV operation: 8 - 56V
• Portal mounting (drilling holes): 6 x M6
• Tool holder: 8 mm
• Dimensions (L x W x H): 280 x 92 x 85 mm
• Noise level: 71 dB (A)
• Weight: 2.80 kg

Included in the package

• Electrical cable, 0.75 + 4 m
