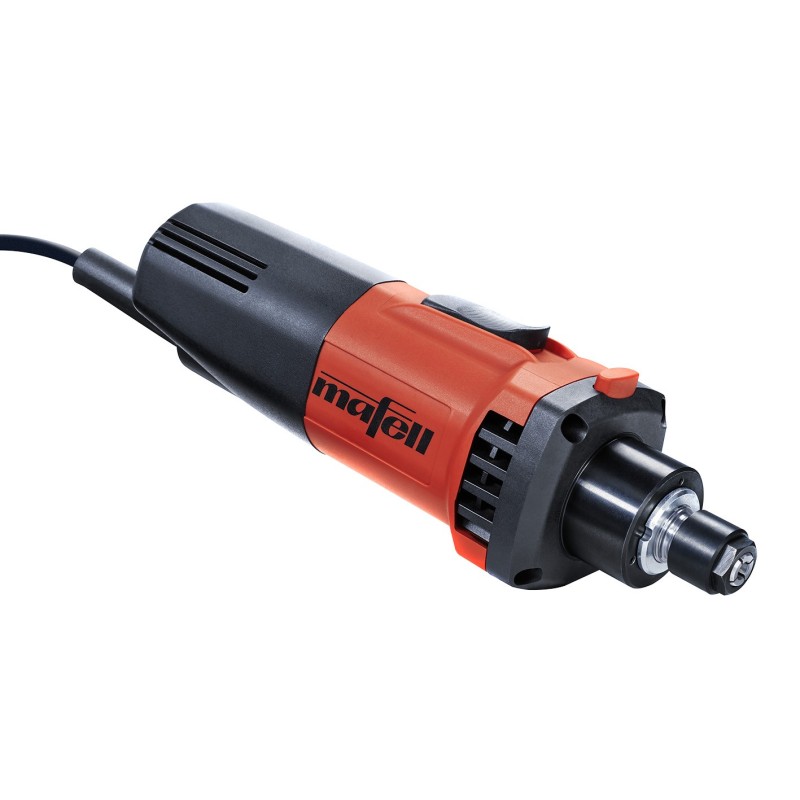

Frees Mafell FM 1000 PV

Application Area

• Model making, mold making, advertising technology, engraving, jewelry, electronics, stone working
• Perfectly suited for CNC milling machines, grinding machines, and flexible shafts
• For processing wood, metal, plastic, foam, polystyrene, stone

Product Description

With the FM 800 / FM 1000, MAFELL has developed another milling motor made in Germany. High quality standards and well-thought-out details make the MAFELL milling motor the best partner in its performance class. Speed can be infinitely adjusted for every job. In addition, digital electronics control smooth starting, maintaining constant speed under load, reducing idle speed, and overload protection. The FM 800 / FM 1000 seal protects the spindle and bearing from even the smallest particles, dust, and chips.

Technical Specifications

• Power: 1000 W
• Motor: 230 V / 50 Hz
• Nominal idle speed: 4,000 – 25,000 rpm
• Portal connection: M8 / 4-pole
• Power source PV operation: 8-56V
• Portal connection: 0-10V
• Clamping collar/chuck: 43 mm / 8 mm
• Dimensions (L x W x H): 254 x 79 x 73 mm
• Noise level: 71 dB (A)
• Weight: 1.65 kg

Included in the Package

• Chuck 8 mm
• Clamping nut
• Open-ended wrench
• Electrical cable, 0.75 + 4 m
