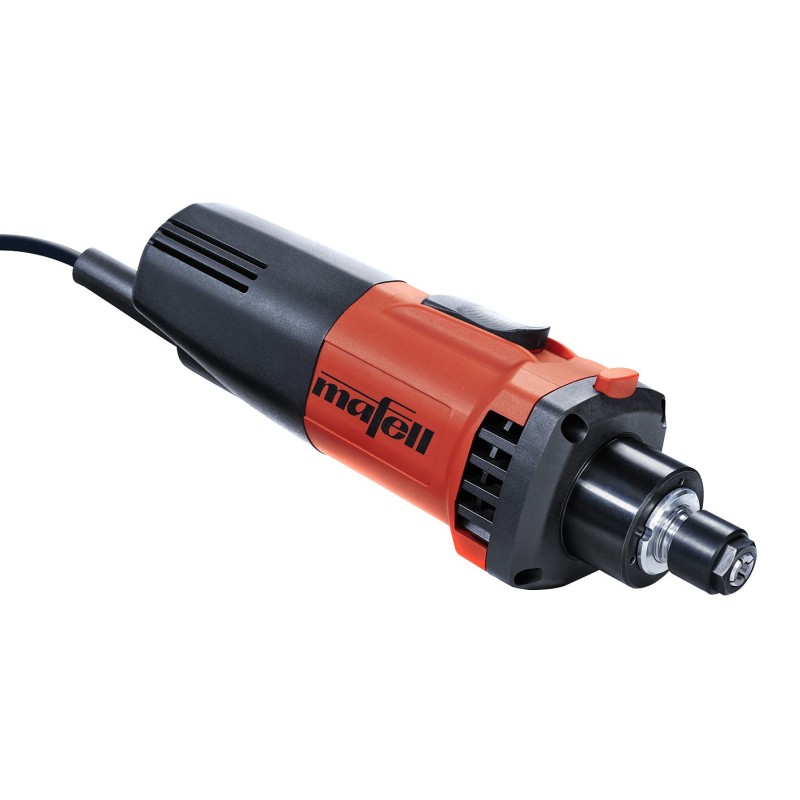

Frees Mafell FM 800

Product Description

With the FM 800 / FM 1000, MAFELL has developed another milling motor made in Germany. The high quality standard and well-thought-out details make the MAFELL milling motor the best partner in its performance class. The speed can be infinitely adjusted for any job. In addition, digital electronics control smooth starting, maintaining constant speed under load, reducing idle speed, and overload protection. The FM 800 / FM 1000 seal protects the spindle and bearing from even the smallest particles, dust, and chips.

Application Area

• Model making, mold making, advertising technology, engraving, jewelry, electronics, stone masonry
• Perfectly suitable for CNC milling machines, grinding devices, and flexible shafts
• For processing wood, metal, plastic, foam, polystyrene, stone

Technical Specifications

• Power: 800 W
• Motor: 230 V / 50 Hz
• Nominal idle speed: 7,000 – 25,000 rpm
• Collet chuck / clamp: 43 mm / 6 mm
• Dimensions (L x W x H): 254 x 79 x 73 mm
• Noise level: 71 dB (A)
• Weight: 1.60 kg

Included in the Package

• 6 mm collet
• Clamping nut
• Open-end wrench
• Electrical cable, 1 m
