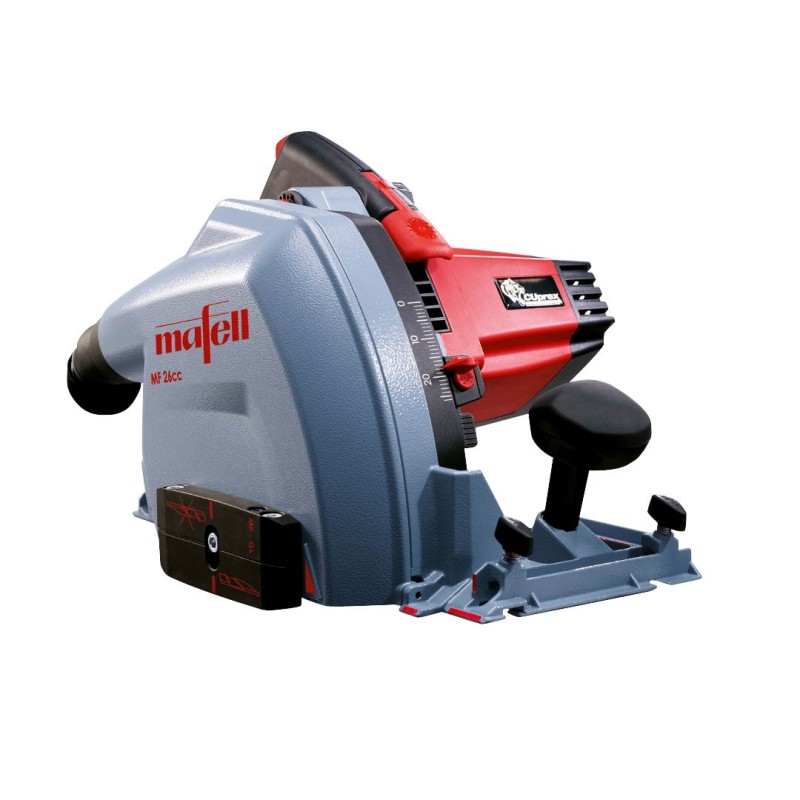

MAFELL MF 26 cc GF-MAX multi-cutter in T-MAX

The MAFELL MF 26 cc GF-MAX is a professional multi-cutter designed for precise routing, sawing and slotting in a wide range of materials. Its robust construction combines a lightweight magnesium die-cast housing with impact-resistant glass-fibre-reinforced plastic components for demanding workshop and construction-site applications.

With a 1400 W universal motor and continuously variable speed from 3600 to 6250 rpm, the MF 26 cc can be adapted to different materials and cutting tasks. The machine offers a routing depth of up to 26 mm and can also be used on the MAFELL F guide rail with a saw blade.

The additional adjustment screw and scale allow the routing depth to be set with 0.1 mm precision. The depth indicator can be adjusted for operation with or without a guide rail, ensuring that the selected depth remains clearly visible in either configuration.

The glider runs directly on the material surface, helping prevent the machine from tipping and providing secure positioning even when working on an F guide rail. A groove in the base plate also allows compatible special guide attachments to be used.

The GF-MAX version is supplied with the MF-GF 90/15 plasterboard cutter, designed for creating 90° V-grooves up to 15 mm deep in plasterboard. This makes the machine suitable for folding and bending techniques used to create stable corner coverings and other formed plasterboard elements.

The MF 26 cc is also suitable for longitudinal and cross grooves, V-grooves and special cutting applications. With the appropriate accessories, three slots can be produced in a single operation for creating curved workpieces. The machine can also be equipped with the MF-AF 90 aluminium-composite cutter for façade and sign-making applications.

The protective hood can be opened with a single hand movement. Opening the hood automatically activates the switch lock and saw-blade lock, providing additional safety during tool changes and setup. The T-MAX transport and storage case keeps the machine and accessories organised and protected.

Technical data

• Routing depth: 0–26 mm
• No-load speed: 3600–6250 rpm
• Rated input: 1400 W
• Motor: universal motor, 230 V / 50 Hz
• Weight: 4.9 kg

Delivery contents

• 1 × TCT saw blade 120 × 1.2/1.8 × 20 mm, Z 24, WZ, for universal use in wood – article 092558
• 1 × MF-GF 90/15 plasterboard cutter for 90° V-grooves up to 15 mm routing depth, including 2 position indicators – article 206590
• 1 × parallel guide
• 1 × 4 m connection cable – article 087323
• 1 × T-MAX transport and storage box
