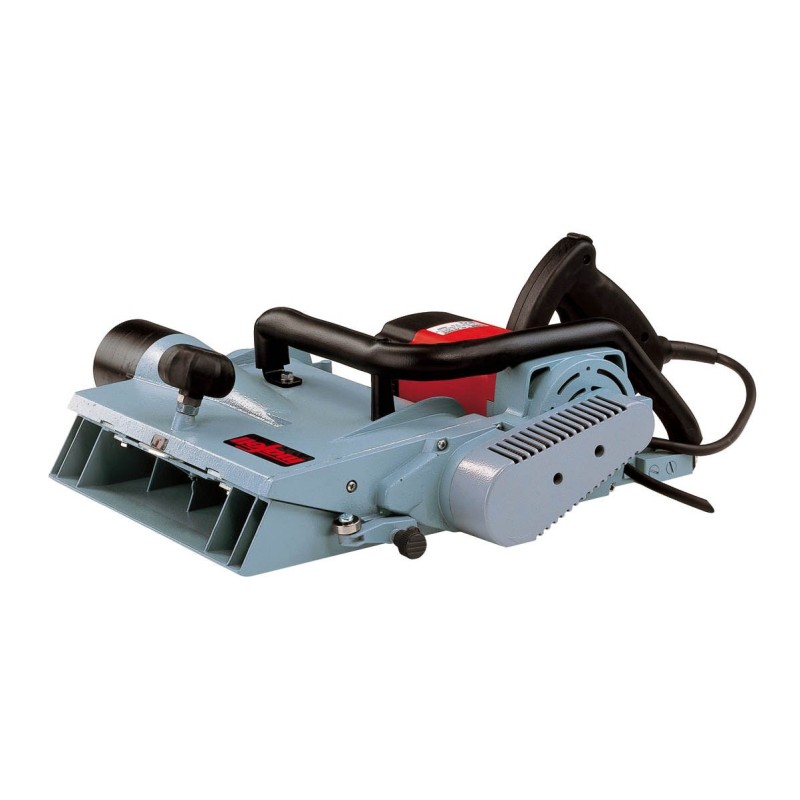

MAFELL ZH 320 Ec carpentry planer

The MAFELL ZH 320 Ec is a professional carpentry planer designed for efficient planing of solid wood components up to 320 mm wide. Its exceptionally wide planing capacity, powerful motor and lightweight construction make it suitable for demanding carpentry and timber-construction applications.

The stepless chip removal adjustment from 0 to 3 mm allows the material removal rate to be precisely adapted to the workpiece and application. The 320 mm planing width enables efficient processing of particularly wide timber components. The integrated start-up roller helps make maximum use of the available planing width.

The newly developed chip-ejection system provides excellent chip discharge. A reinforced airflow combined with innovative rotating air guidance efficiently removes the large volume of chips generated during planing and helps prevent blockages caused by wet wood chips. The chip-ejection system also allows connection to a 75/80 mm extraction hose.

The development of the powerful 2700 W motor makes it possible to achieve a 320 mm planing width with a single-phase motor. Despite its substantial planing capacity, the solid cast construction weighs only 14 kg thanks to consistent lightweight engineering.

Intelligent electronic control provides soft start, maintains a constant speed under load, reduces speed during idle operation to protect the machine and provides overload protection.

A highly effective tool brake stops the planing shaft within seconds after the machine is switched off, providing an additional safety feature after planing.

The ZH 320 Ec uses a disposable reversible-knife system, eliminating time-consuming knife adjustment. The ergonomically designed handles and low weight support energy-efficient handling during professional work.

The MAFELL ZH 320 Ec is intended for planing work up to 320 mm wide, particularly in solid wood and demanding carpentry applications.

Technical data

• Planing width: 320 mm
• Chip removal: 0–3 mm
• Cutter head diameter: 74 mm
• No-load speed: 8500 rpm
• Rated input: 2700 W
• Motor: universal motor, 230 V / 50 Hz
• Weight: 14 kg
• Article number: 924401

Delivery contents

• 1 × pair reversible HL-steel knives, article 091791
• 1 × 8 mm single-end spanner, article 093258
• 1 × 10 m connection cable
• Cardboard box
