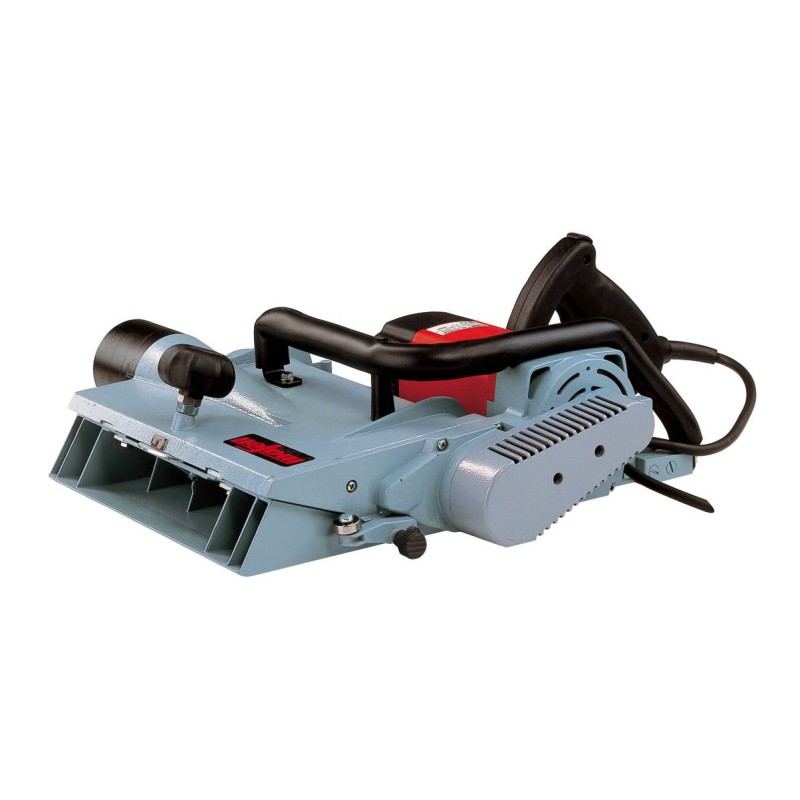

Carpentry planer Mafell ZH 320 Ec

Product Description

This planer cuts through everything! Unique depth of cut adjustment from 0 to 3 mm without steps. A new chip ejector that leaves blockages caused by wet shavings in the past thanks to enhanced airflow and a new air channel! Due to its lightweight construction, it weighs only 14.0 kg. The MAFELL motor offers a completely new planing experience. As with most MAFELL machines, intelligent control electronics monitor the work in the background. Smooth starting and maintaining speed under load, reducing speed to protect the machine without load, and overload protection.

Application Area

• Cutting width up to 320 mm (ZH 320 Ec)
• Suitable materials include solid wood

Technical Specifications

• Planing width: 320 mm
• Planing depth: 0 – 3 mm
• Cutter head diameter: 74 mm
• Nominal no-load speed: 8500 1/min
• Power: 2700 W
• Weight: 14.0 kg
• Motor: 230 V / 50 Hz

Included in the package

• 1 pair of reversible blades (091791)
• Wrench 8 mm (093258)
• Electric cable 4 m (087378)
