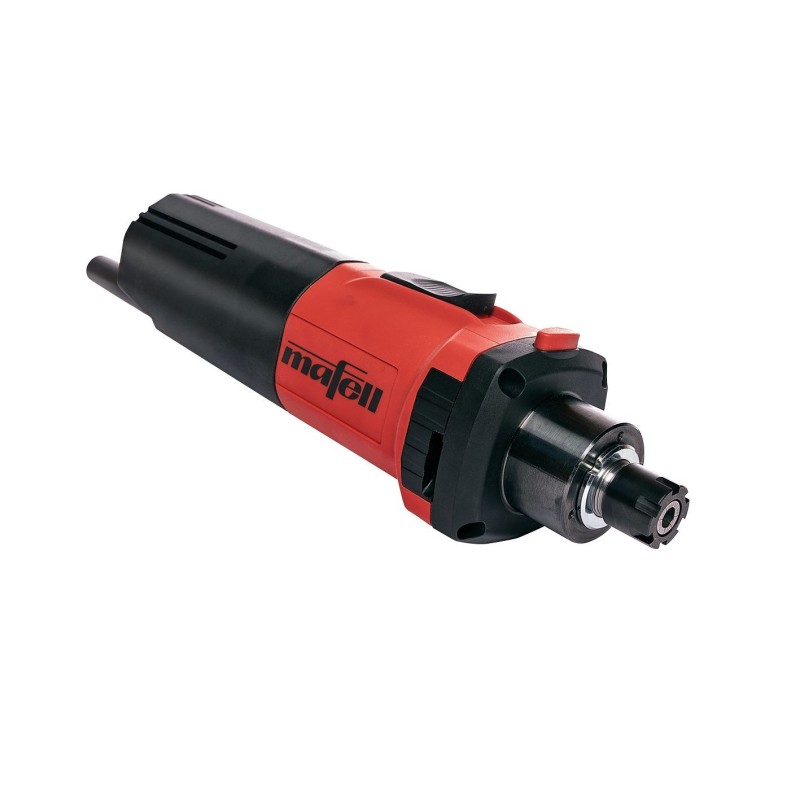

MAFELL FM 1000 NC-ER milling motor for CNC portal machines

The MAFELL FM 1000 NC-ER is a professional milling motor designed for CNC portal milling machines, cutting tables, grinding devices and flexible shafts. With 1000 W of power and continuously adjustable speed from 4,000 to 25,000 rpm, it is suitable for a wide range of machining applications.

The speed can be adjusted manually or continuously via the portal interface. The digital electronics provide soft start, constant speed under load, automatic no-load speed reduction and overload protection for controlled and reliable operation.

The ER 16 collet system ensures precise and secure clamping of milling cutters, and the spindle lock makes tool changes quick and easy. The standard 43 mm clamping collar allows simple mounting on portal systems and other holders. The included 5 m NC control cable connects the motor directly to the machine control.

The LED status display signals overload and provides additional operating information. With a sound pressure level of 74 dB(A), the FM 1000 NC-ER runs quietly, and at only 1.65 kg it is compact and light. The motor is suitable for machining wood, metal, plastics, foam, polystyrene and stone.

Typical applications include model making, mould making, advertising technology, engraving, jewellery, electronics and stone processing.

MAFELL milling motors are manufactured in Germany under strict quality controls. Before delivery, each motor is run in on a test bench to support long tool life and service life.

Technical data

• Rated input power: 1000 W
• Motor: Universal motor, 230 V / 50 Hz
• No-load speed: 4,000–25,000 rpm
• Clamping collar: 43 mm
• Collet: ER 16, 8 mm
• NC connection: M8 / 4-pin
• Power supply in NC operation: 8–56 V
• External control: 0–10 V
• Dimensions (L × W × H): 254 × 79 × 73 mm
• Sound pressure level: 74 dB(A)
• Weight: 1.65 kg

Delivery contents

• 1 × Collet ER 16, 8 mm
• 1 × Union nut ER 16M
• 1 × Collet wrench ER 16M
• 1 × NC control cable M8 / 4-pin, 5 m
• 1 × Cable 0.75 + 4 m
