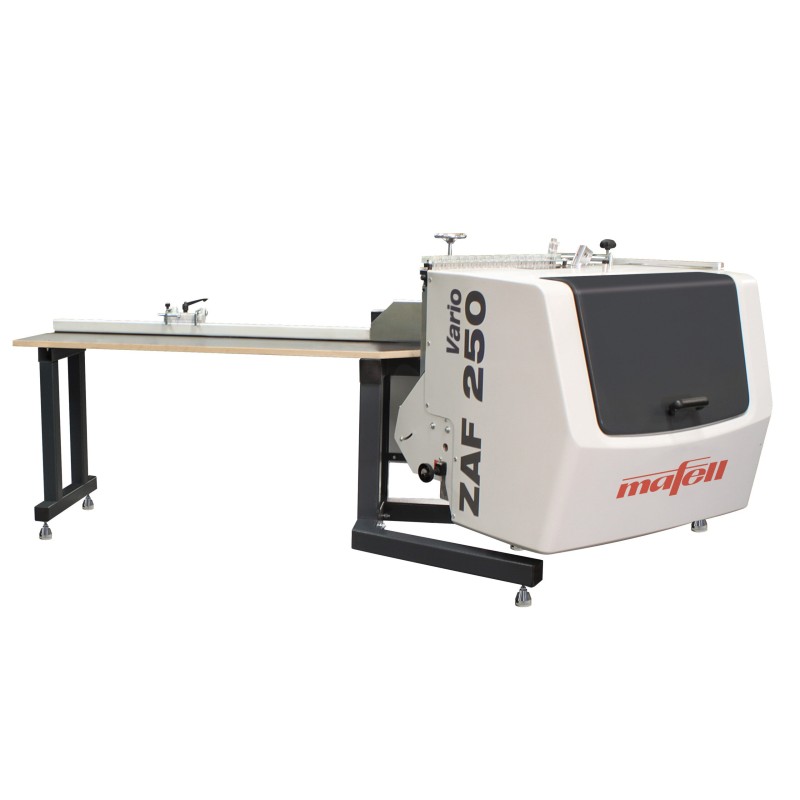

Freespink Mafell ZAF 250 Vario

Product Description

The ZAF 250 Vario cuts all dowel rods quickly, efficiently, and accurately. Whether for straight or angled dowel rods, corner or slanted joints, you can always rely on the ZAF 250 Vario Tenoner. To ensure precise lengths, the stopper is adjusted according to the scale. The cutting tool specially developed for the ZAF 250 Vario can be quickly adapted for various dowel lengths and half-dowel joints. The ZAF 250 Vario has precise adjustment options and a clearly arranged control panel. The new built-in laser facilitates the accurate positioning of wood. The result is millimeter (inch) precise cuts in all types of wood! After setting the desired dowel geometry, the cutting head automatically cuts the desired shape – including angled, curved, and beveled cuts. Of course, the shavings can be collected. For working with hardwoods, the feed speed of the ZAF 250 Vario is adjustable.

Field of Application

• Cutting dowel rods and notches up to 60°
• Suitable materials include solid wood and laminated beams

Technical Specifications

• Maximum wood sizes (L x H) right angle: 500 x 250 mm
• Maximum wood sizes (L x H) 60°: 220 x 250 mm
• Support length (for adjusting the length limiter): 3000 mm
• Feed speed: 0.9 – 2.2 m/min
• Space requirement: 1.5 x 4 m
• Nominal idle speed: 6670 1/min
• Power: 6000 W
• Weight: 392.1 kg
• 3-phase AC motor: 400 V / 50 Hz

Included in the Package

• Cutting head with rotating blades (202105)
• Support table (205025)
