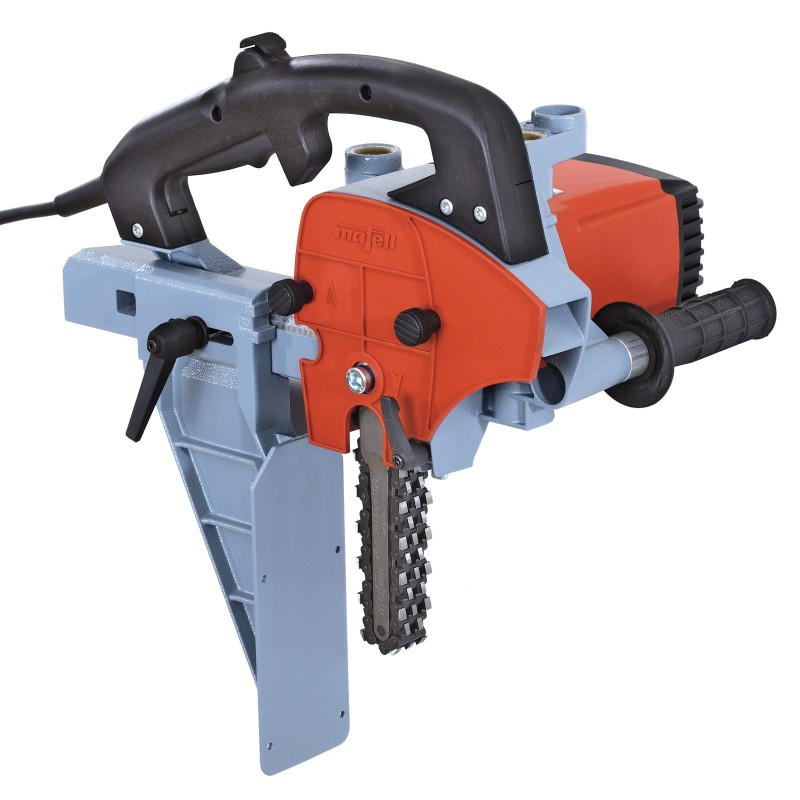

Tapifrees Mafell LS 103/35 Ec (with a 150 mm chain set)

Product Description

Uniquely lightweight, only 8.7 kg (19.2 lbs). Chain drilling without obstruction thanks to the chain. The long guide bar has a large adjustment range, allowing work with large wood pieces. The LS 103 Ec tensioning system enables quick chain replacement. Even retightening the chain without removing the chain guard is quick and easy. Optional accessories include the LS 103 Ec guide bar support, ideal for precise framing work, especially essential for 150 mm (5 7/8 inch) chain sets. With the LS 103 Ec model and the suitable dowel milling machine SG 230, SG 400 or SG 500, you can create grooves up to 500 mm (19 11/16 inches) deep. This is not possible with any other machine on the market!

Application Area

• For cutting dowel grooves
• Suitable materials include solid wood and glued wood

Technical Specifications

• Cutting depth: 150 mm
• Nominal no-load speed: 4050 1/min
• Power: 2500 W
• Weight: 8.7 kg
• Motor: 230 V / 50 Hz

Included in the Package

• Stop plate (200954)
• 4 mm key (093074)
• 8 mm key (093070)
• Electric cable 10 m (087612)
• Chain 28 x 35 x 150 mm

  Attention: using dowel milling machine LS 103 Ec with 150 mm set requires the use of guide support FG 150 (200980)
