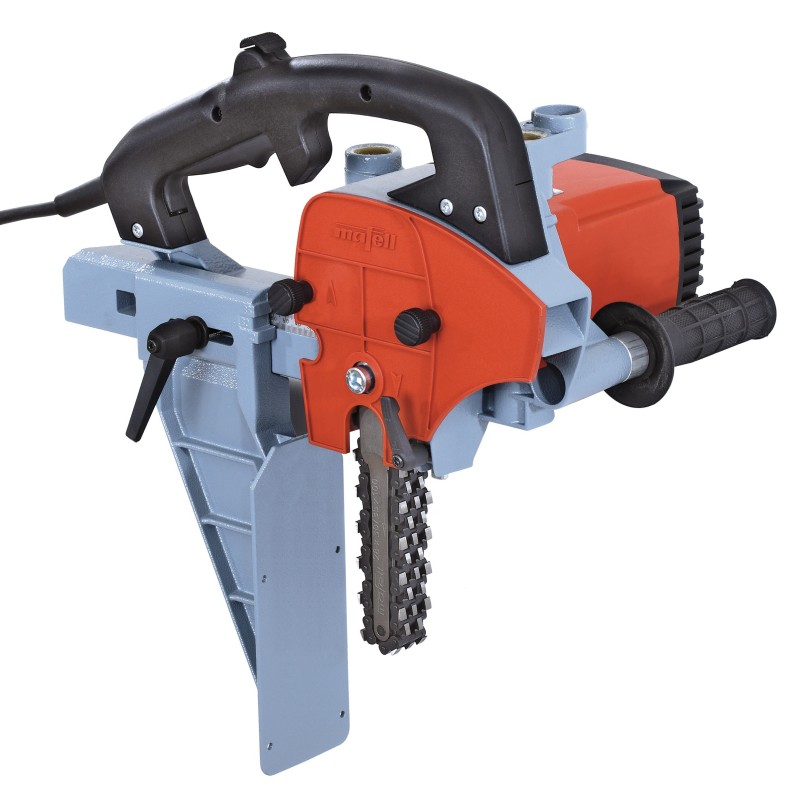

Tapifrees Mafell LS 103/40 Ec (with a 150 mm saw set)

Product Description

Uniquely lightweight, only 8.7 kg (19.2 lbs). Chain routing without obstruction. The long guide bar has a wide adjustment range and allows working with large wooden parts. The LS 103 Ec tensioning system enables quick chain replacement. Even retightening the chain without removing the chain guard is fast and easy. Optional accessories include the LS 103 Ec guide plate support, ideal for precise framing work, especially essential for 150 mm (5 7/8 inch) chain sets. With the LS 103 Ec model and the suitable routing machines SG 230, SG 400, or SG 500, you can make grooves up to 500 mm (19 11/16 inches) deep. This is not possible with any other machine on the market!

Application Area

• For cutting mortises
• Suitable materials include solid wood and glued wood

Technical Specifications

• Cutting depth: 150 mm
• Nominal no-load speed: 4050 1/min
• Power: 2500 W
• Weight: 8.7 kg
• Motor: 230 V / 50 Hz

Included in the Package

• Stop plate (200954)
• 4 mm wrench (093074)
• 8 mm wrench (093070)
• Electric cable 10 m (087612)
• Chain 28 x 40 x 150 mm

  Attention: Using the tap router LS 103 Ec with the 150 mm set requires the use of guide support FG 150 (200980)
