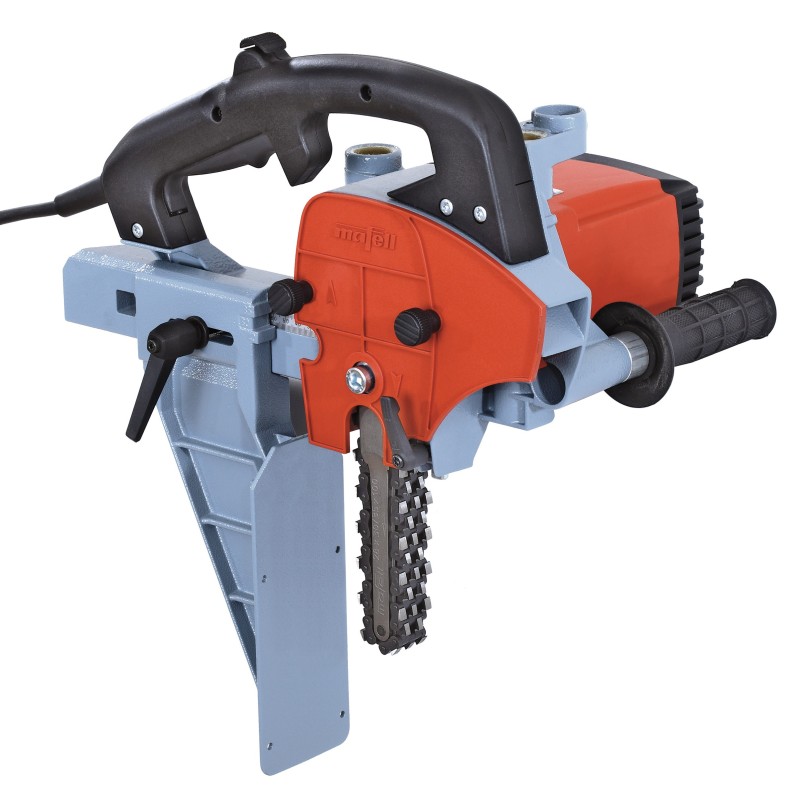

Tapifrees Mafell LS 103/35 Ec (with a 100 mm chain set)

Product Description

Uniquely lightweight, only 8.7 kg (19.2 lbs). Chain drilling without obstruction. The long guide rail has a large adjustment range and allows for working with large wooden pieces. The LS 103 Ec tensioning system enables quick chain replacement. Even re-tensioning the chain without removing the chain guard is fast and easy. Optional accessories include the LS 103 Ec guide rail support, ideal for precision framing work, especially essential for 150 mm (5 7/8 inch) chain sets. With the LS 103 Ec model and the suitable routing device SG 230, SG 400, or SG 500, you can make grooves up to 500 mm (19 11/16 inches) deep. This is not possible with any other machine on the market!

Application Area

• For cutting mortises
• Suitable materials include solid wood and glued wood

Technical Specifications

• Cutting depth: 100 mm
• No-load speed: 4050 1/min
• Power: 2500 W
• Weight: 8.7 kg
• Motor: 230 V / 50 Hz

Included in the Package

• Stop plate (200954)
• Wrench 4 mm (093074)
• Wrench 8 mm (093070)
• Electric cable 10 m (087612)
• Chain 28 x 35 x 100 mm

  Attention: using the LS 103 Ec milling machine with the 150 mm set requires the use of guide support FG 150 (200980)
