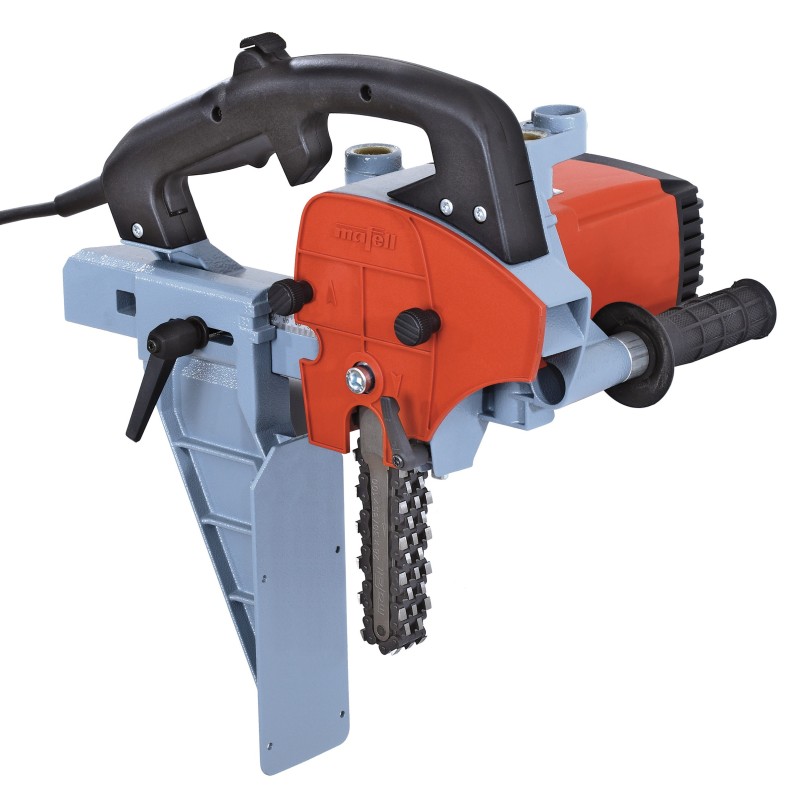

Tapifrees Mafell LS 103/40 Ec (with a 100 mm saw set)

Product Description

Uniquely light, only 8.7 kg (19.2 lbs). Chain drilling without obstruction. The long guide plate has a large adjustment range, allowing work with large wooden parts. The LS 103 Ec tensioning system enables quick chain changes. Even re-tensioning the chain without removing the chain guard is quick and easy. Optional accessories include the LS 103 Ec guide plate support, ideal for precise framing work, especially essential for 150 mm (5 7/8 inch) chain sets. With the LS 103 Ec model and the appropriate router unit SG 230, SG 400 or SG 500, you can make slots up to 500 mm (19 11/16 inches). This is not possible with any other machine available on the market!

Application Area

• For cutting mortise joints
• Suitable materials include solid wood and glued wood

Technical Specifications

• Cutting depth: 100 mm
• Nominal no-load speed: 4050 1/min
• Power: 2500 W
• Weight: 8.7 kg
• Motor: 230 V / 50 Hz

Included in the package

• Stop plate (200954)
• Key 4 mm (093074)
• Key 8 mm (093070)
• Electric cable 10 m (087612)
• Chain 28 x 40 x 100 mm

  Attention: Using the LS 103 Ec router with a 150 mm set requires the use of guide support FG 150 (200980)
