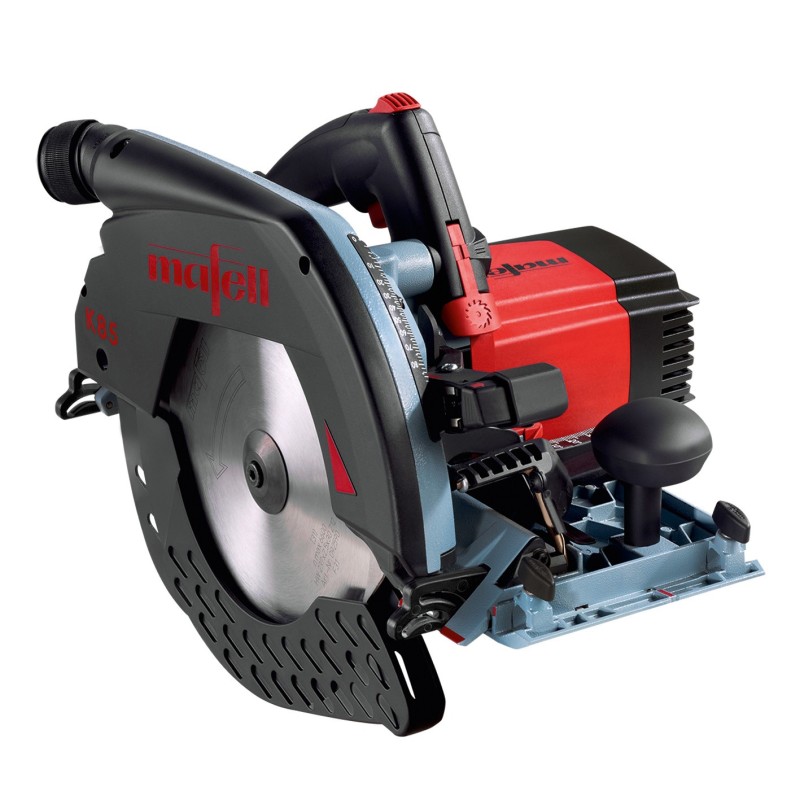

Circular saw K 85 Ec

Product Description

The MAFELL portable circular saw combines power and precision with ease of use and ergonomic design. These features make the machine a unique system. Great power and torque take on a whole new meaning with the new high-performance CUprex motor. The saw comes equipped with performance-optimized digital electronics and newly developed control technology. The saw speed continuously adjusts according to the material properties and usage. There is no longer a need to loosen the blade guard – the FLIPPKEIL offers optimal user-friendliness and safety for plunge cuts.

Application Areas

• Cross and longitudinal cuts
• Angle and bevel cuts up to 60°
• Mortise cuts
• Plunge cuts
• Inclines and grooves
• Suitable materials include solid wood, panel materials, insulation materials, doors, worktops, and interior finishing and renovation materials

Technical Specifications

• Cutting depth 0°: 0 – 88 mm
• Cutting depth 45°: 0 – 61.5 mm
• Cutting depth 60°: 2 – 44.5 mm
• Cutting angle: 0 – 60°
• Nominal idle speed: 2250 – 4400 1/min
• Power: 2300 W
• Vacuum connection: 35 mm
• Weight: 6.7 kg
• Motor: 230 V / 50 Hz

Included in the Package

• TCT saw blade 237 x 1.8/2.5 x 30 mm AT, 12 teeth, longitudinal cutting (092590)
• Parallel guide (205323)
• Hose connection (205290)
• 5 mm wrench (093034)
• Electric cable 4 m (087888)
