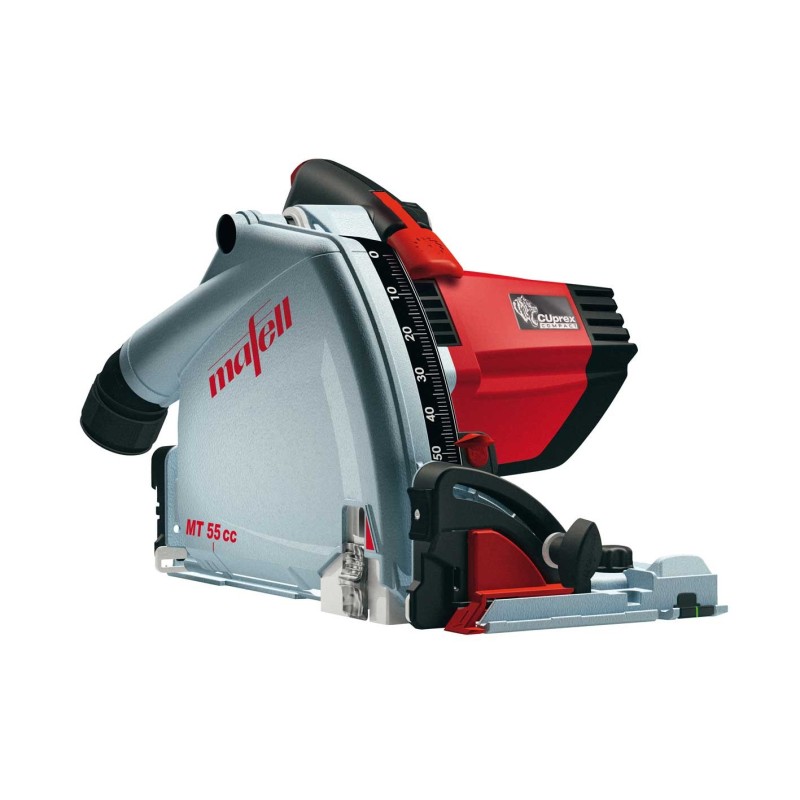

Submersible circular saw MT 55 cc MaxiMAX T-MAX

Product Description

The idea of developing a new plunge saw is not in itself new. However, the innovative aspect of this further development was the creation of a unique precision product made from specially designed machine components. The MT 55 cc is suitable for many tasks. It can perform plunge, bevel, and miter cuts with utmost precision and without tearing the material. The notch function is activated quickly with a single motion. The MT 55 cc then cuts edges as cleanly as a stationary machine, even when the blade guard is worn. The smoothly variable speed is suitable for different materials and saw blades. The cutting depth range has now been extended to 57 mm (2 1/4 inches). Thanks to the innovative tilt system, the possibilities for bevel cuts are virtually limitless.

Applications

• Cross and longitudinal cuts
• Bevel cuts -1 to +48°
• Plunge cuts
• Suitable materials include solid wood, cement board, melamine resin panels (Trespa), OSB, gypsum fiberboard, plastic, facade panels, and various sheet materials

Technical Specifications

• Cutting depth: 0 – 57 mm
• Cutting depth at 45°: 0 – 40.5 mm
• Cutting angle: – 1 – 48°
• Nominal no-load speed: 3600 – 6250 1/min
• Power: 1400 W
• Weight: 4.5 kg
• Motor: 230 V / 50 Hz

Included in the package

• TCT saw blade 162 x 1.2/1.8 x 20 mm, AT, 48 teeth, universal use, wood (092584)
• Saw blade key 5 mm (093034)
• Electric cable 4 m (087323)
• Position indicator MT-PA (205398)
• Parallel guide (203214)
