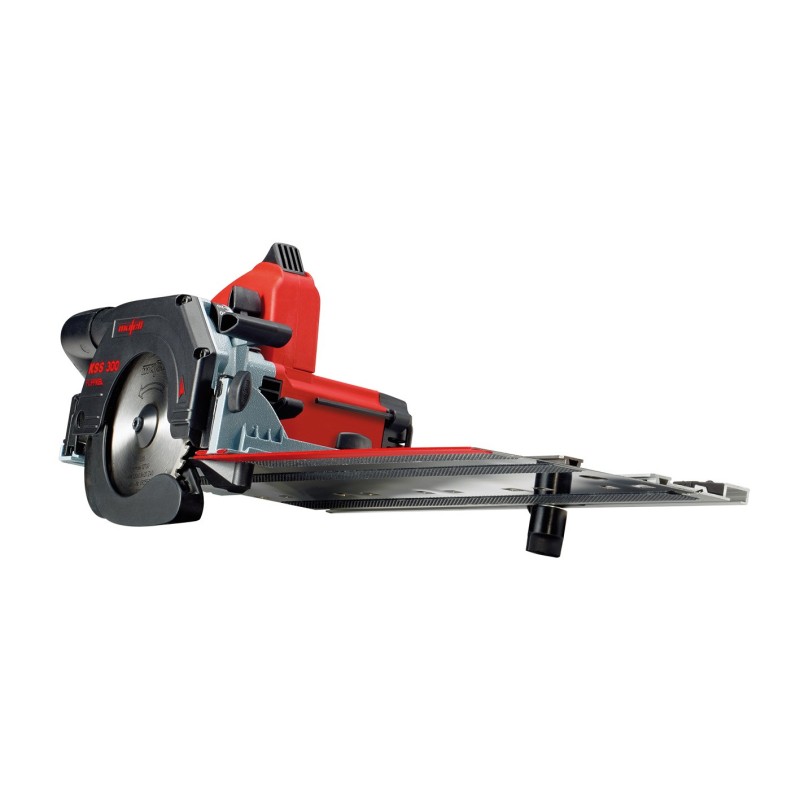

Circular saw on a rack KSS 300 MaxiMAX, T-Max's

Description

In interior finishing, one thing is key: precision. The KSS 40 cross-cutting system, designed for the highest handling, thus focuses on all the essential functions for this type of work. Attaching a portable circular saw to the KSS rail creates a very practical one-handed usable cross-cutting system for making angle and bevel cuts; once the cut is made, the saw automatically returns to its starting position. The portable circular saw offers a maximum cutting depth of 42 mm (1 5/8 inches) and provides sufficient power in every situation. Thanks to magnesium die-cast components, this solid and lightweight saw weighs only 3.0 kg (5.3 pounds). The entire compact sawing system fits into the T-MAX carrying case – it is the ideal tool for making cross, bevel, groove, and angle cuts, as well as for freehand work.

Application Area

• Straight cuts with guide rail and CUnex
• Circular cutting guided by P1-PA parallel stop and CUnex
• Recesses
• Bevel cuts up to 45°
• Compatible materials depend on the saw blade; see special accessories/tools

Technical Specifications

• Cutting depth at 0° with guide rail: 40 mm
• Cutting depth at 45° with guide rail: 27 mm
• Cutting depth at 0° without guide rail: 42 mm
• Bevel range: 0 – 45 °
• Cutting length with guide rail: 300 mm
• Cutting angle: – 45° – + 60 °
• Nominal no-load speed: 8800 1/min
• Nominal input power: 900 W
• Weight: 3.0 kg
• Universal motor: 230 V / 50 Hz

Included in the package

• 1 pc Flexi-Guide soft ruler FX 140, 1.4 meters (204372)
• 2 pcs clamping screws (203773)
• 1 pc TCT saw blade, 120 x 1.2/1.8 x 20 mm, TT, 40 teeth, clean cut, wood (092559)
• 1 pc guide rail, cutting length 292 mm (208169)
• 1 pc parallel guide (203180)
• 1 pc hose connection (203782)
• 1 pc saw blade key 4 mm (093074)
• 1 pc electric cable 4 m (087323)
