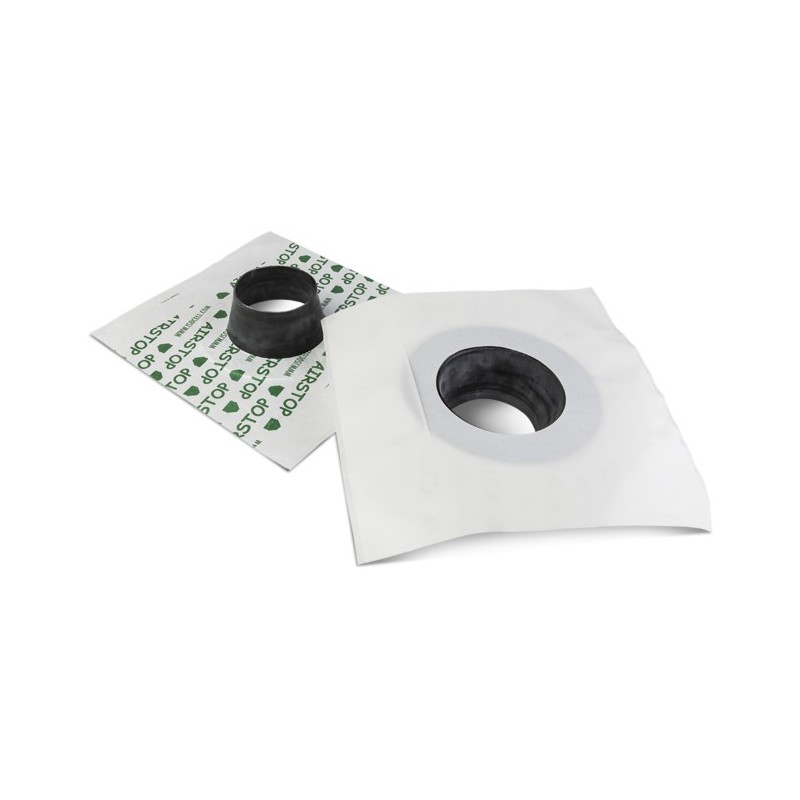

ISOCELL AIRSTOP RGD 3RGD200 Pipe Sleeve

ISOCELL AIRSTOP RGD 3RGD200 Pipe Sleeve

ISOCELL AIRSTOP RGD 3RGD200 is an extremely flexible EPDM rubber pipe sleeve for the permanent airtight sealing of large pipe penetrations. The integrated sealing plaster with age-resistant pure acrylate adhesive provides a reliable and durable connection to vapour barriers, OSB boards and other airtight layers.

The pipe sleeve is suitable for 200–220 mm penetrations and measures 420 × 420 mm. The EPDM rubber is highly flexible and resistant to ageing, and withstands temperatures up to 160 °C for short periods.

Technical data:

• Article number: 3RGD200
• Type: RGD
• Dimensions: 420 × 420 mm
• For penetrations: 200–220 mm
• Material: EPDM rubber
• Sealing plaster: age-resistant pure acrylate adhesive
• Temperature resistance: –40 to +100 °C
• Working temperature: –5 to +40 °C
• Short-term heat resistance: up to +160 °C
• Colour: black, white sealing plaster with green AIRSTOP imprint
• Adhesive age resistance: 30 years

Application:
Pull the rubber sleeve over the pipe and attach it to the airtight layer using the integrated sealing plaster. The materials must be free from dust and grease, and the substrate must be dry and sound. ISOCELL primer is recommended for highly porous and absorbent substrates.
