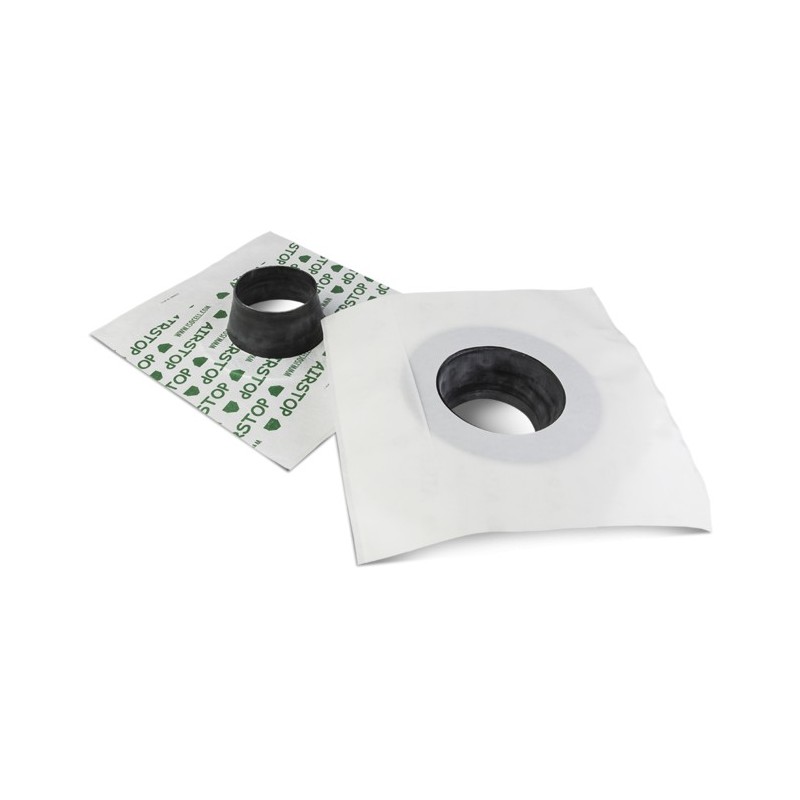

ISOCELL AIRSTOP RGD 3RGD100 Pipe Sleeve

ISOCELL AIRSTOP RGD 3RGD100 Pipe Sleeve

ISOCELL AIRSTOP RGD 3RGD100 is a flexible EPDM rubber pipe sleeve for permanently airtight sealing around pipes and large-diameter penetrations. The integrated sealing plaster with age-resistant pure acrylate adhesive provides a reliable and durable connection to vapour barriers, OSB boards and other airtight layers.

The sleeve is suitable for 100–110 mm penetrations and measures 320 × 320 mm. It is extremely flexible and resistant to ageing, while the rubber withstands temperatures up to 160 °C for short periods.

Technical data:

• Article number: 3RGD100
• Type: RGD
• Dimensions: 320 × 320 mm
• For penetrations: 100–110 mm
• Material: EPDM rubber
• Sealing plaster: age-resistant pure acrylate adhesive
• Temperature resistance: –40 to +100 °C
• Working temperature: –5 to +40 °C
• Short-term heat resistance: up to +160 °C
• Colour: black, white sealing plaster with green AIRSTOP imprint
• Adhesive age resistance: 30 years

Application:
Pull the rubber sleeve over the pipe and attach it to the airtight layer using the integrated sealing plaster. The materials must be free from dust and grease, and the substrate must be dry and sound. ISOCELL primer is recommended for highly porous substrates.
