ISOCELL AIRSTOP RGD 3RGD50 Pipe Sleeve

ISOCELL AIRSTOP RGD 3RGD50 Pipe Sleeve

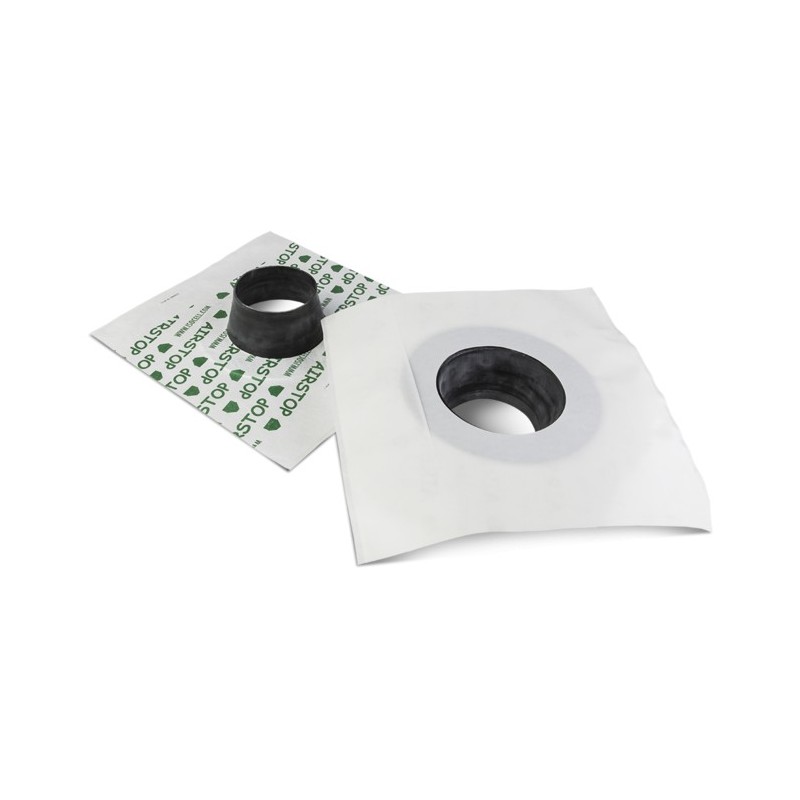

ISOCELL AIRSTOP RGD 3RGD50 is a flexible EPDM rubber pipe sleeve designed for the permanent airtight sealing of penetrations around pipes. It is suitable for 50–70 mm diameter penetrations and has dimensions of 228 × 228 mm.

The sleeve is highly flexible and resistant to ageing. The integrated sealing plaster with age-resistant pure acrylate adhesive enables an airtight connection to vapour barriers, OSB boards and other airtight-layer materials. The EPDM rubber is heat-resistant up to +160 °C for short periods.

Technical data:

• Manufacturer: ISOCELL
• Product series: AIRSTOP RGD
• Product code: 3RGD50
• Product type: Pipe Sleeve
• Dimensions: 228 × 228 mm
• Suitable penetration diameter: 50–70 mm
• Material: EPDM rubber
• Sealing material: sealing plaster with age-resistant pure acrylate adhesive
• Temperature resistance: –40 to +100 °C
• Short-term heat resistance: up to +160 °C
• Working temperature: –5 to +40 °C
• Colour: black, white sealing plaster with green AIRSTOP imprint

Application: permanent airtight sealing of pipe penetrations through vapour barriers, OSB boards and other airtight-layer materials.
