ISOCELL AIRSTOP DD3 3AIRDD3K Cable Sleeve

ISOCELL AIRSTOP DD3 3AIRDD3K Cable Sleeve

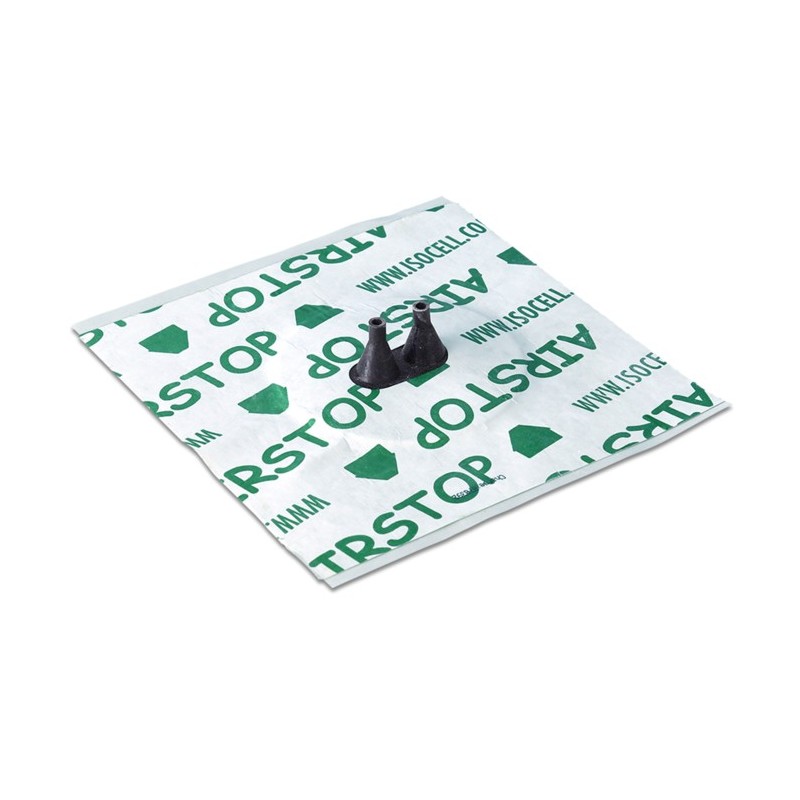

ISOCELL AIRSTOP DD3 3AIRDD3K is a flexible EPDM rubber cable sleeve designed for the permanent airtight sealing of cable penetrations. It is suitable for 4–6 mm diameter cables and has dimensions of 150 × 150 mm.

The DD3 cable sleeve features two penetration openings per adhesive pad, allowing two cables to be sealed with one sleeve. The integrated sealing plaster with age-resistant pure acrylate adhesive provides an airtight connection to vapour barriers, OSB boards and other airtight-layer materials.

Technical data:

• Manufacturer: ISOCELL
• Product series: AIRSTOP DD3
• Product code: 3AIRDD3K
• Product type: Cable Sleeve
• Dimensions: 150 × 150 mm
• Suitable cable diameter: 4–6 mm
• Penetration openings: 2 openings per adhesive pad
• Material: EPDM rubber
• Sealing material: sealing plaster with age-resistant pure acrylate adhesive
• Temperature resistance: –40 to +100 °C
• Short-term heat resistance: up to +160 °C
• Working temperature: –5 to +40 °C
• Colour: black, white sealing plaster with green AIRSTOP imprint
• Adhesive ageing resistance: 30 years

Application: permanent airtight sealing of cable penetrations through vapour barriers, OSB boards and other airtight-layer materials.
