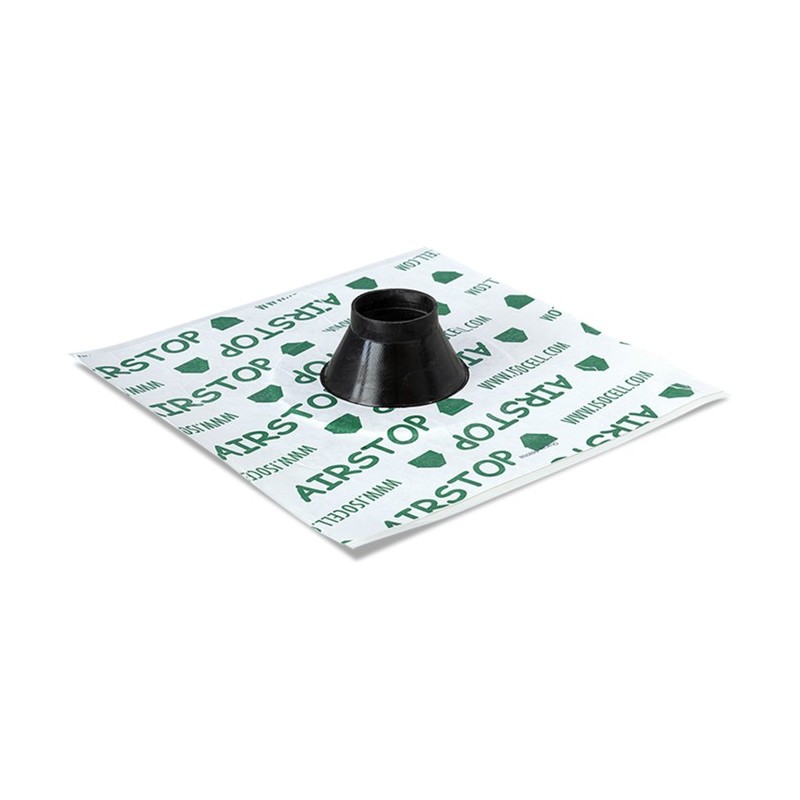

ISOCELL AIRSTOP GD2 3AIRGD2TYP2 Conduit Sleeve

ISOCELL AIRSTOP GD2 3AIRGD2TYP2 Conduit Sleeve

ISOCELL AIRSTOP GD2 3AIRGD2TYP2 is an elastic conduit sleeve for the permanent airtight sealing of penetrations around conduits. It is suitable for penetrations with a diameter of 26–35 mm and is designed for use in airtight building structures.

The 150 × 150 mm sleeve is made of flexible EPDM rubber. The integrated age-resistant sealing layer enables airtight sealing to vapour control membranes, OSB boards and other airtight building materials.

Key features:

• suitable for penetrations with a diameter of 26–35 mm
• dimensions 150 × 150 mm
• flexible EPDM rubber
• extremely flexible
• permanent airtight sealing of penetrations
• integrated age-resistant sealing layer
• suitable for vapour control membranes, OSB boards and other airtight building materials
• temperature resistance –40 to +100 °C
• short-term heat resistance up to +160 °C
• working temperature –5 to +40 °C
• sealing material age resistance of 30 years

Product code: 3AIRGD2TYP2
Dimensions: 150 × 150 mm
Penetration diameter: 26–35 mm
Material: EPDM rubber
