Free templates Arunda 120B Midi

Application Area

• Wooden fish tail joints
• Cross joints for floor beams or rafters (roof system).
• Easy to use both in the workshop and on-site.

Product Description

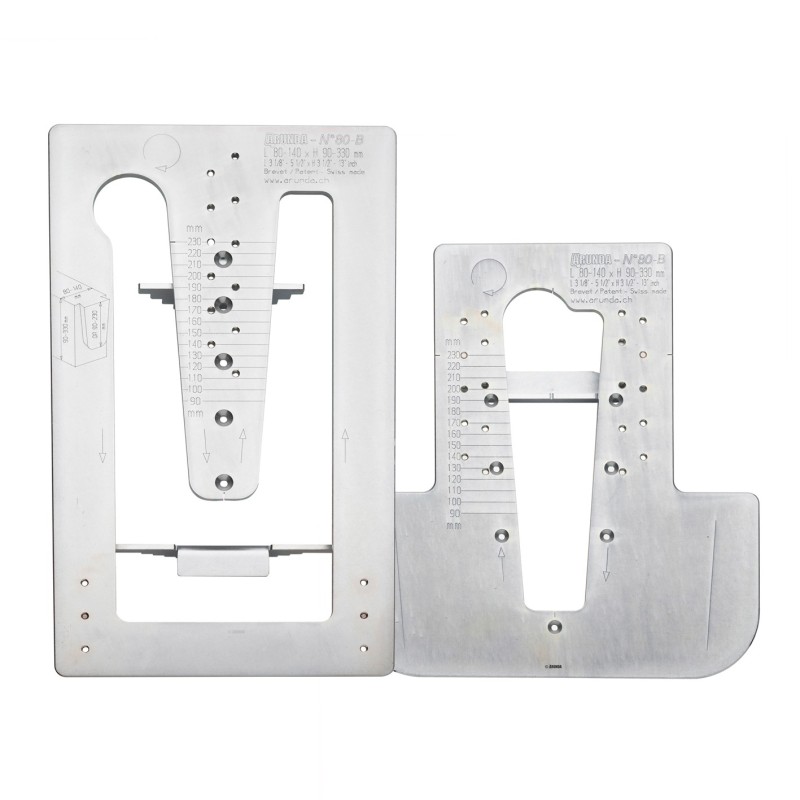

Arunda is a system designed for the manual fabrication of wood joints for wooden frame constructions. All you need is a couple of Arunda jigs (one for the joint and another for the recess), a powerful Mafell router LO 65 Ec equipped with a special Arunda blade, and some accessories. Several models are available, but only one size is selected that fits the width of the wood you use most frequently. Remember: Mid

Technical Specifications

• Joint width in wood: (No. 160) 150 – 300 mm
• Joint height: (No. 160) 90 – 400 mm
• Wood section (No. 160) 150x90 – 300x400 mm
• Joint width in wood: (No. 120) 120 – 200 mm
• Joint height: (No. 120) 90 – 380 mm
• Wood section (No. 120) 120x90 – 200x380 mm
• Joint width in wood: (No. 80) 80 – 140 mm
• Joint height: (No. 80) 90 – 330 mm
• Wood section: (No. 80) 80x90 – 140x330 mm
• Joint width in wood: (No. 60-1) 60 – 120 mm
• Joint height: (No. 60-1) max. 600 mm
• Wood section: (No. 60-1) max. 120x600 mm
• Joint width in wood: (No. 50) 40(45) – 100 mm
• Joint height: (No. 50) 90 – 330 mm
• Wood section: (No. 50) 40x90 – 100x330 mm

Ordering Specifications

• Router template 50B Maxi (91A701)
• Router template 50B Midi (91A711)
• Router template 80B Maxi (91A702)
• Router template 80B Midi (91A712)
• Router template 120B Maxi (91A703)
• Router template 120B Midi (91A713)
• Router template 160B Maxi (91A704)
• Router template 160B Midi (91A714)
• Router template 60-1B Maxi (91A705)
• Router template 60-1B Midi (91A715)

The package includes

• 1 pair of jigs (Midi, Maxi)
• 1 router (Maxi)
• 1 guide ring (Maxi)
• 1 extension plate (Maxi)
• 1 positioning gauge (Maxi)
• 2 pairs of blades (Maxi)
• 1 wooden box (Midi, Maxi)
