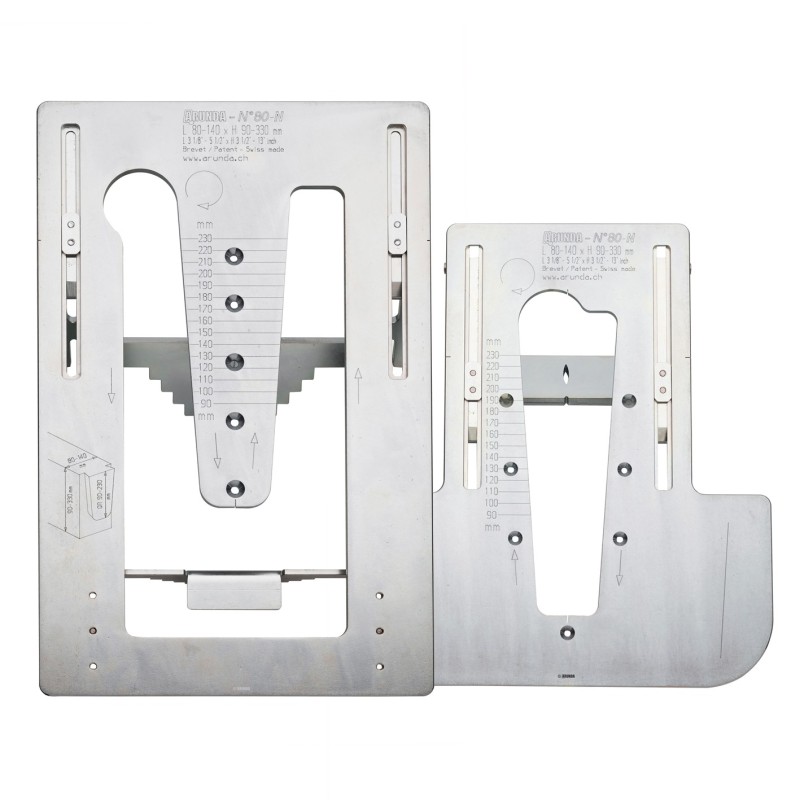

Free templates Arunda 50N Maxi

Application Area

• Wooden fishbone joints
• Cross joints for floor beams or rafters (roof system).
• Easy to use both in the workshop and on-site.

Product Description

Arunda is a system for manually creating wooden joints intended for assembling wooden frame structures. All you need is a couple of Arunda templates (one for the tenon and another for the mortise), a powerful Mafell router LO 65 Ec, equipped with a special Arunda blade and some accessories. Several models are available, but only one size is chosen that fits the width of the wood you use most frequently. Remember: Mid

Technical Specifications

• Tenon width in wood: (No. 120) 120 – 200 mm
• Tenon height: (No. 120) 90 – 380 mm
• Wood section (No. 120) 120x90 – 200x380 mm
• Tenon width in wood: (No. 80) 80 – 140 mm
• Tenon height: (No. 80) 90 – 330 mm
• Wood section: (No. 80) 80x90 – 140x330 mm
• Tenon width in wood: (No. 50) 40(45) – 100 mm
• Tenon height: (No. 50) 90 – 330 mm
• Wood section: (No. 50) 40x90 – 100x330 mm

Ordering Specification

• Router template 50N Maxi (91A706)
• Router template 50N Midi (91A716)
• Router template 80N Maxi (91A707)
• Router template 80N Midi (91A717)
• Router template 120N Maxi (91A708)
• Router template 120N Midi (91A718)

The set includes

• 1 pair of templates (Midi, Maxi)
• 1 router (Maxi)
• 1 guide ring (Maxi)
• 1 extension plate (Maxi)
• 1 positioning gauge (Maxi)
• 2 pairs of blades (Maxi)
• 1 wooden box (Midi, Maxi)
