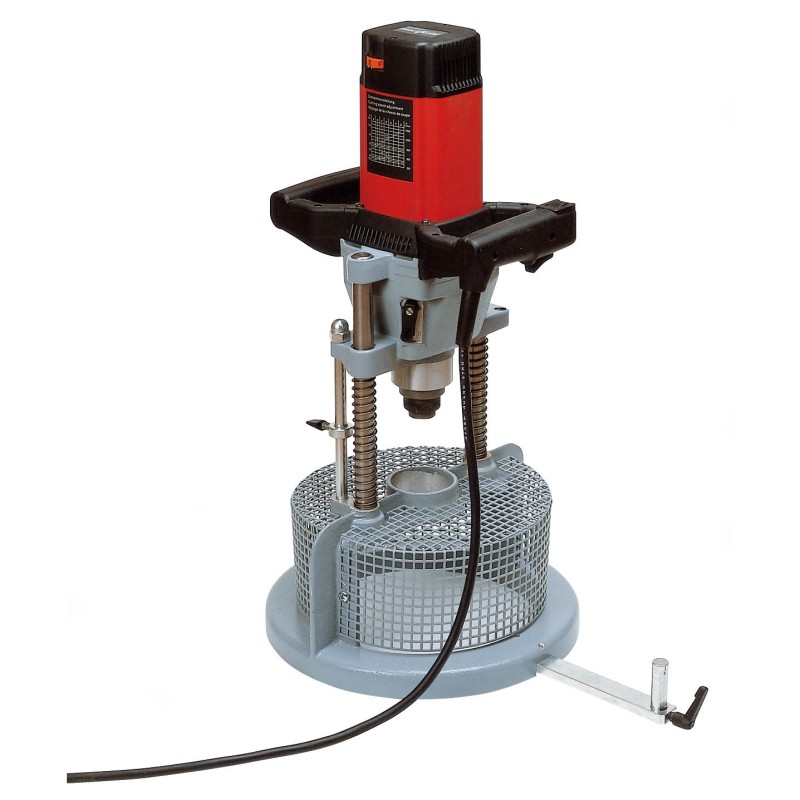

Woodworking drill ZB 100 ES
Reference: M-923601
€3,806.40
Tax included
Price without tax: 3120€
- Extremely robust
- Clockwise/counterclockwise rotation
Stock:
In stock
Warranty:
3 years
Power:
Electricity 230V
Complexity:
Set
Country of origin:
Germany
Product Description
The ZB 100 ES is suitable for drilling holes up to 160 mm (6 5/16 inches) for all standard types of dowels. The speed can be adjusted in steps from 340 to 1450 rpm depending on the diameter of the tool. The special drill holder of the ZB 100 ES offers maximum possible safety. Of course, we provide the optimal tool for your purpose: e.g., reaming, GEKA cutting tools, etc.
Application Area
- Cutting straight ring grooves
- Cutting conical ring grooves
- Drilling holes for GEKA toothed plate connections
- Counterboring and back drilling
- Suitable materials include solid wood and laminated beams
Technical Specifications
- Drilling depth: 100 mm
- Nominal no-load speed: 340 – 1450 1/min
- Power: 1200 W
- Weight: 9 kg
- Motor: 230 V / 50 Hz
The package includes
- Special drill holder for ring groove cutting tools without front edge limitation (039160)
- Mounting shaft for ring groove cutting tools (039192)
- Electric cable 10 m (087612)
- Extremely robust
- Clockwise/counterclockwise rotation
