Drill bit DD40 P PowerMAX

Product Description

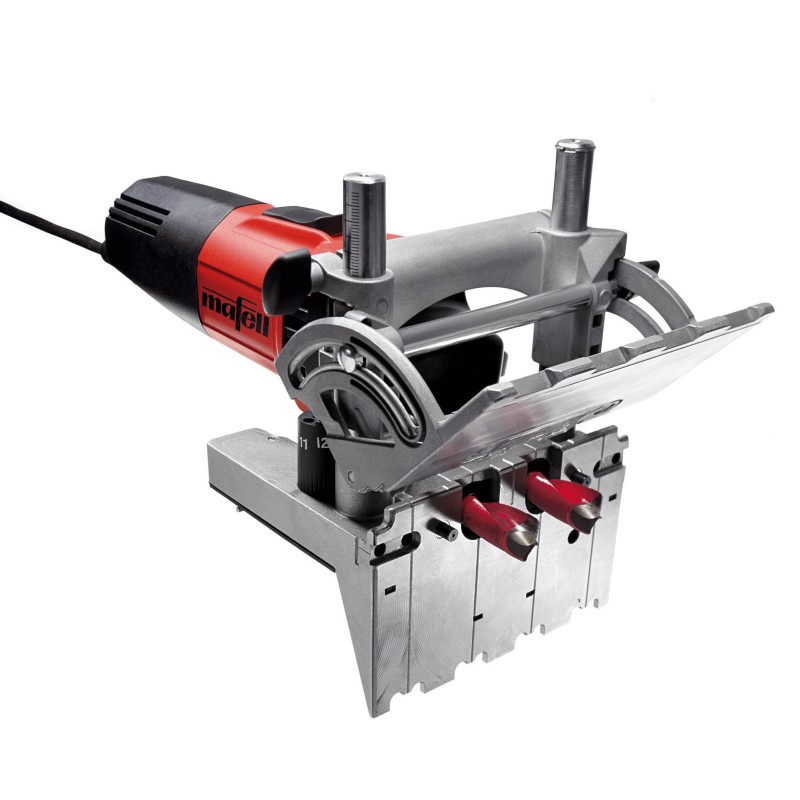

The Duo-Dowel Jointer DD40 is the only portable dowel machine on the market. This MAFELL product is unique worldwide. Thanks to the use of conventional wooden dowels combined with the precise Duo-Dowel Jointer DD40, MAFELL has initiated a revolution in portable joinery equipment. Furthermore, the Duo-Dowel System DD40 is faster, more accurate, and cheaper than any other similar device on the market. The detail is secured precisely with dowels, making fastening much easier and quicker or can even be omitted altogether. The MAFELL DD40 system is an inclusive product package that includes a standard PowerMAX machine in a T-MAX box, wooden dowels, a glue bottle, 2 anti-slip mats, and drill bits.

Application Areas

• All types of joints ranging from 5–16 mm (3/16 inch – 5/8 inch)
• Rows of holes
• Drilling for fittings / installations
• Ideal for constructing frames and stairs in the workshop and on-site
• Suitable materials include solid wood and panel materials

Technical Specifications

• Drilling depth: 0 – 40 mm
• Distance between drills: 32 mm
• Chuck diameter: 8 mm
• Max. drilling depth diam.: 16 mm
• Min. drilling depth diam.: 5 mm
• Drilling angle: 0 – 90 °
• Nominal no-load speed: 13500 rpm
• Power: 1000 W
• Vacuum connection: 35 mm
• Weight: 2.9 kg

Included in the Package

• 2 anti-slip mats (095063)
• Glue bottle 250 ml (without glue) (095059)
• Key with handle (093282)
• Support brackets (203473)
• Glue nozzle Ø 8 mm (095060)
• Electric cable 4 m (077015)
• 2 dowel drills HW, Ø 8, 10, 12 mm
• 1 set of wooden dowels, 10 x 40 mm, 100 pcs
• 1 set of wooden dowels, 12 x 60 mm, 40 pcs
• 1 set of wooden dowels, 8 x 30 mm, 200 pcs
