Drill bit DDF 40 MidiMAX

Product Description

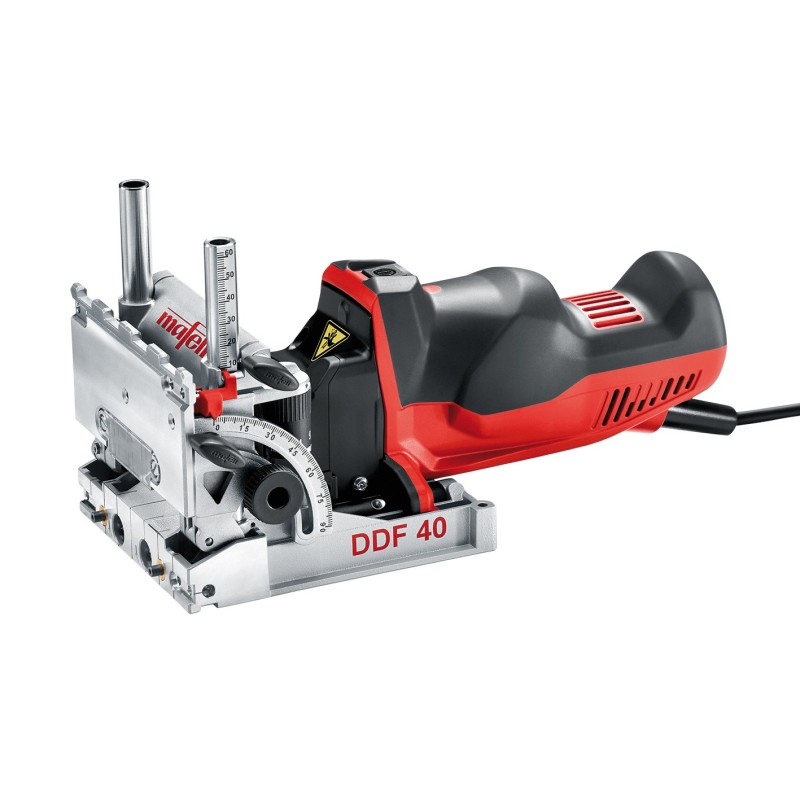

The DuoDoweler DDF 40 makes drilling precise dowel holes easier and more efficient. Its features include a wide range of applications, a new ergonomic design for easy handling, and fully aligned stable joints. No other handheld power tool can create such high-quality joints, whether in the workshop or on-site. When making corner joints, partitions, or rows of holes, the DDF 40 not only offers the accuracy of a stationary machine but also the cost savings associated with conventional wooden dowels. Additionally, the technique of using dowels in pairs achieves remarkable stability even at the dry assembly stage.

Application Area

• All types of joints ranging from 3–12 mm (1/8 inch – 1/2 inch)
• Rows of holes
• Drilling for reinforcement/installation
• Ideal for building frames and stairs in the workshop and on-site
• Suitable materials include solid wood and panel materials

Technical Specifications

• Drilling depth: 0 – 40 mm
• Bit spacing: 32 mm
• Chuck diameter: 8 mm
• Max. drill diameter: 12.2 mm
• Min. drill diameter: 3 mm
• Cutting angle: 0 – 90 °
• Nominal no-load speed: 8000 rpm
• Power: 900 W (1.2 hp)
• Hose outer diameter: 29 mm
• Motor: 230 V~, 50 Hz
• Weight: 2.8 kg (6.2 lbs.)
• Dimensions: (width x length x height): 145 x 300 x 164 mm

Included in the Package

• Support ZA
• Complete additional stop ZAG
• Pose connection
• Position indicator PAZ
• Handle key (093282)
• Glue bottle 250 ml (095059)
• 2 pcs anti-slip mats (095063)
• Electric cable 4 m (077015)
• 2 pcs dowel drill HW Ø 8 mm (090097)
• 1 pack of dowels 8 x 30 mm, 200 pcs
