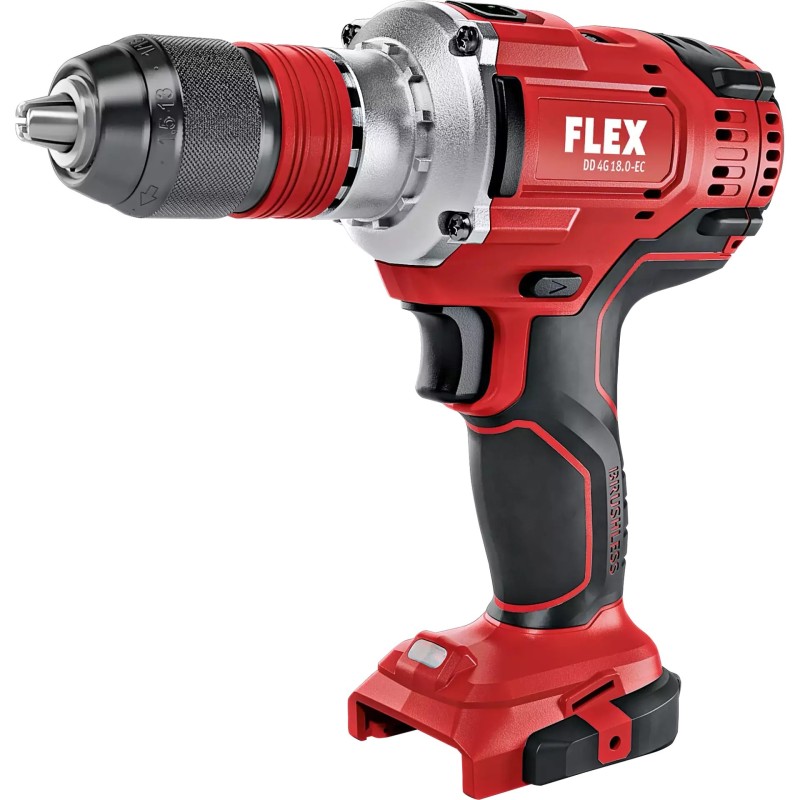

Features

• Brushless motor with higher efficiency and longer lifespan.

• Electronic management system (EMS) protects the machine, extends its lifespan, and enhances efficiency.

• 4-speed gearbox up to 4200 rpm for maximum drilling and screwdriving efficiency.

• Anti-kickback system to prevent wrist twisting.

• The drill can be removed without tools.

• Right/left rotation with a safety lock.

• Metal quick-release chuck with a push ring and automatic locking feature.

• Electronic quick brake.

• Durable gearbox casing made from die-cast aluminum.

• Acceleration switch with a locking button.

• Extendable handle provides user protection even at maximum torque.

• Ergonomically designed, non-slip, soft rubber handle.

• Integrated LED light.

• LED battery capacity indicator.

• FLEX battery system: compatible with all Flex 18 V battery packs.

Technical specifications

• Battery voltage: 18 V

• Battery capacity: 2.5 / 5.0 / 8.0 Ah (depending on the set)

• No-load speed, 1st gear: 0 - 460 rpm

• No-load speed, 2nd gear: 0 - 910 rpm

• No-load speed, 3rd gear: 0 - 2100 rpm

• No-load speed, 4th gear: 0 - 4200 rpm

• Maximum torque, hard: 135 Nm

• Maximum torque, soft: 64 Nm

• Maximum drilling diameter in wood: 76 mm

• Maximum drilling diameter in steel: 13 mm

• Drill chuck width: 1.5 - 13 mm

• Dimensions LxWxH: 215 x 75 x 240 mm

• Weight without battery pack: 1.5 kg

• Torque adjustment: 11 levels

Contents

• 1× HZ-S DD 4G 18.0-EC (489417)

• 1× BV 18.0-EC (453994)

• 1× Bit holder DD/PD/ID 18.0 (430862)

• 1× Belt clip
