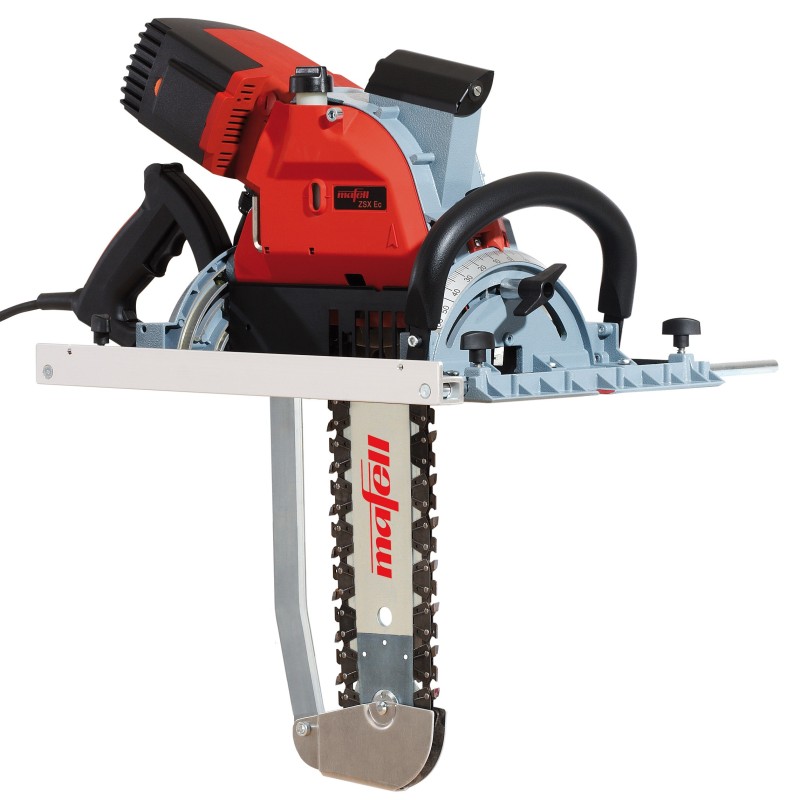

Carpenter's chainsaw ZSX Ec / 400 Q
Reference: M-925503
€6,098.78
Tax included
Price without tax: 4999€
- High-performance CUprex engine
- Up to 60 °C tilt range on both sides
- The ability to continuously monitor the cut
Stock:
In stock
Warranty:
3 years
Power:
Electricity 230V
Complexity:
Set
Country of origin:
Germany
Product Description
MAFELL's unique chain guide system ensures a smooth and precise cut. The ZSX Ec can be tilted up to 60° on both sides. The ability to precisely set a wide range of working angles in two directions offers maximum convenience. The motor's cooling air blows the indicator clean and ensures clear visibility of the mark. The large and adjustable chip removal system operates extremely efficiently. Adjustable speed automatic chain lubrication to prevent oil leaks onto the wood. Like all our portable carpentry saws, the ZSX Ec also uses our guide rail system. Equally customized for use by both right-handed and left-handed users. The ergonomic design of the handle and the placement of the switches applies pressure to the support always at the correct angle.
Applications
- Cross and longitudinal cuts
- Bevel cuts up to 60°
- General joint work
- Combined bevel cuts up to 60°
- Suitable materials include solid wood, laminated beams, insulation materials
Technical Specifications
- Cutting depth 0°: 400 mm
- Cutting depth 45°: 282 mm
- Cutting depth 60°: 199 mm
- Cutting angle in both directions: – 60 – +60°
- Nominal no-load speed: 3000 – 3600 1/min
- Power: 3000 W
- Weight: 14.1 kg
- Motor: 230 V / 50 Hz
Included in the package
- 2 pieces of cross and longitudinal cutting saw chains Q 400 (006974)
- Parallel guide (204591)
- Chain tool 6 mm (093272)
- Electric cable 10 m (087612)
- High-performance CUprex engine
- Up to 60 °C tilt range on both sides
- The ability to continuously monitor the cut
