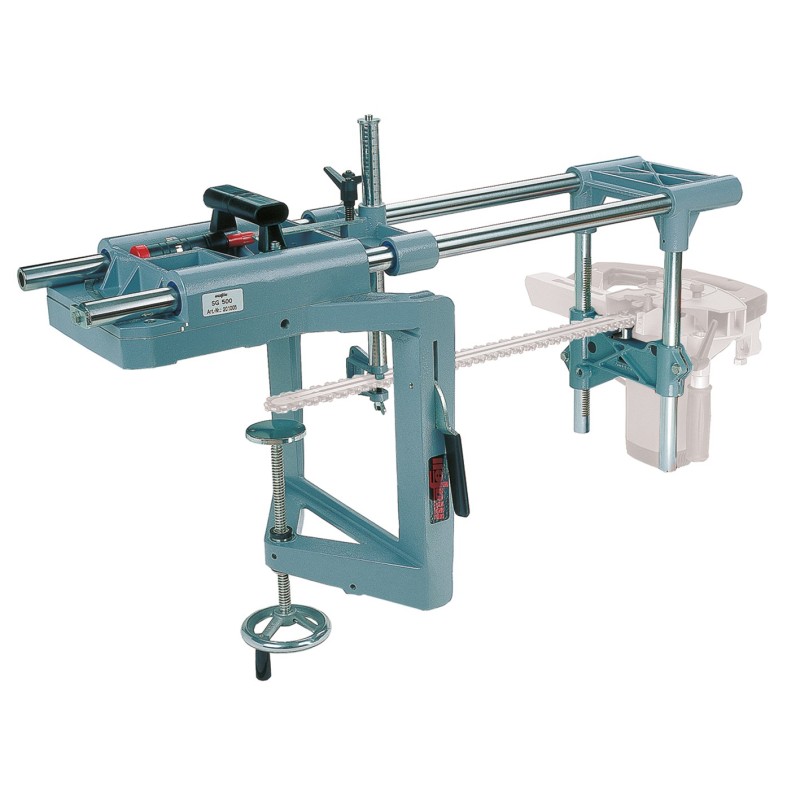

MAFELL SG 500 slotting device for LS 103 Ec chain mortiser

The MAFELL SG 500 takes the LS 103 Ec chain mortiser really deep: it cuts slots up to 500 mm deep, with a slot length of 50 mm per plunge. It is ideal for large-dimension milling work in solid wood and glued laminated timber, for example for steel plates and concealed connectors.

The sturdy, torsion-resistant guide frame ensures accurately fitting slots. The guide angle can be adjusted up to 45° to both sides, offering versatile application options.

Three guide pieces (3, 5 and 7 mm) are supplied and can be inserted into the front end of the guide rail. This makes it possible to widen the slot in a second pass, with the inserted guide piece preventing the chain from drifting into the previously cut slot.

The included clamping device with a clamping width of up to 300 mm holds the device securely on the workpiece.

Note: the LS 103 Ec chain mortiser and chain sets are not included and must be purchased separately.

MAFELL products are manufactured in Germany under strict quality controls.

Technical data

• Slotting depth vertical: 500 mm
• Slot width: 10–17 mm
• Slot length: 50 mm
• Tilting: up to 45° to both sides
• Weight: 31.4 kg
• Compatible with: MAFELL LS 103 Ec chain mortiser

Delivery contents

• 3 × Guide pieces 3, 5 and 7 mm
• 1 × Clamping device, max. clamping width 300 mm (order no. 039602)
• 1 × Pressure press (order no. 076158)

Note!
The LS 103 Ec router is not included in the delivery package. Accessories are supplied as standard without a chain set.
Please choose a set that meets your needs from our selection.
Accessories can only be supplied together with a chain set.
