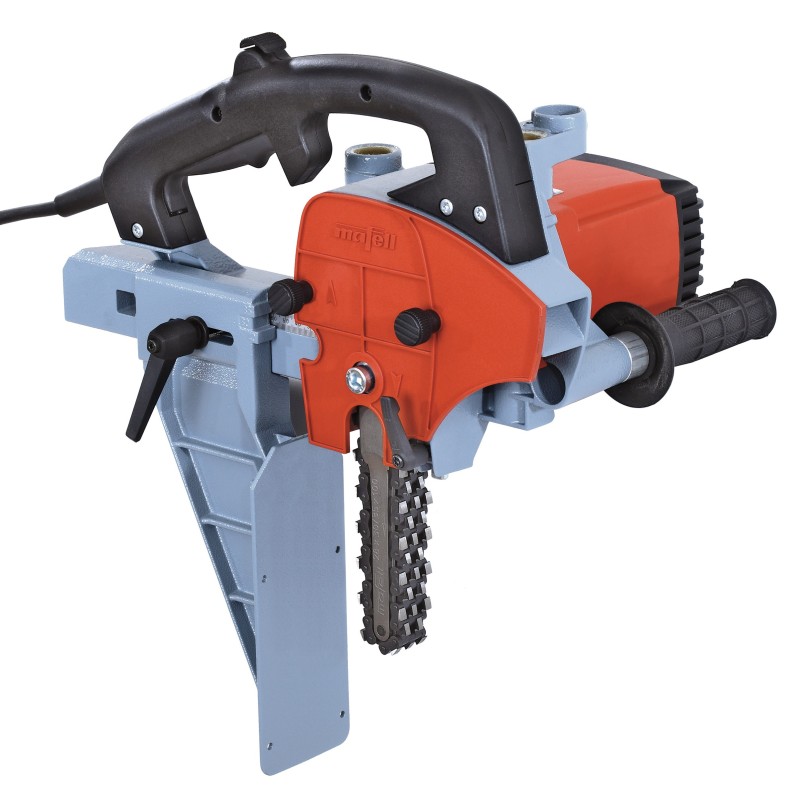

MAFELL LS 103/35 Ec chain mortiser with chain set 28 × 35 × 100 mm

The MAFELL LS 103/35 Ec is a professional chain mortiser for cutting mortises in solid wood and glued laminated timber. It is supplied complete with a 28 × 35 × 100 mm chain set and is ready for immediate use.

The extremely powerful 2500 W motor ensures high efficiency and significant time savings. At only 8.7 kg, the LS 103 Ec is a unique lightweight in its class – ideal for use on the construction site.

The tensioning system enables fast chain changes. Even re-tensioning the milling chain with the chain guard fitted is quick and easy. The long cross-stop holder with a large adjustment range allows work on large-dimension timbers.

The ergonomic handle and switch arrangement ensures safe, efficient and effortless work. With 100 mm chain sets the mortising depth is 100 mm, and with 150 mm chain sets it is 150 mm.

For precise work in timber framing, especially with 150 mm chain sets, the FG 150 guide frame is recommended. With the matching slotting frame (SG 230, SG 400 or SG 500), slots of up to 500 mm can be cut.

MAFELL power tools are manufactured in Germany under strict quality controls.

Technical data

• Rated input power: 2500 W
• Motor: Universal motor, 230 V / 50 Hz
• No-load speed: 4,050 rpm
• Mortising depth (100 mm chain sets): 100 mm
• Mortising depth (150 mm chain sets): 150 mm
• Chain set included: 28 × 35 × 100 mm
• Power cable: 10 m
• Weight: 8.7 kg

Delivery contents

• 1 × Chain set 28 × 35 × 100 mm
• 1 × Cross stop
• 1 × Hex key 4 mm
• 1 × Hex key 8 mm
• 1 × Power cable 10 m
• Packed in a cardboard box

Attention: using the LS 103 Ec milling machine with the 150 mm set requires the use of guide support FG 150 (200980)
